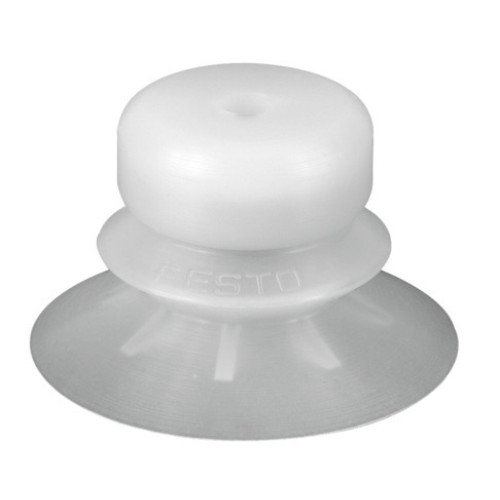

ESV-50-BS Suction cup without connector

Manufacturer's No: ESV-50-BS     Manufacturer: Festo
ESV-50-BS Suction cup without connector

Availability On Request

£16.89
  • Suction cup model: ESV-50-BS
  • Height compensator: 11mm
  • Min. workpiece radius: 150mm
  • Suction cup diameter: 50mm
  • Suction cup volume: 14.23 cubic centimeters
  • Suction cup shape: Round bellows 1.5 convolutions
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Ambient temperature: -30°C to 180°C
  • Holding force at nominal operating pressure: 72.6 N
  • Product weight: 13.9g
  • Material: VMQ (silicone)
  • Colour: Transparent
  • Shore hardness: 50 +/- 5
  • RoHS-compliant materials
  • Suitable for food use (refer to supplementary material information)
  • Connection position: Top
  • Mounting position: Optional
  • Symbol: 991485


Product

Manufacturer Material ID -
ESV-50-BS
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
41111926
