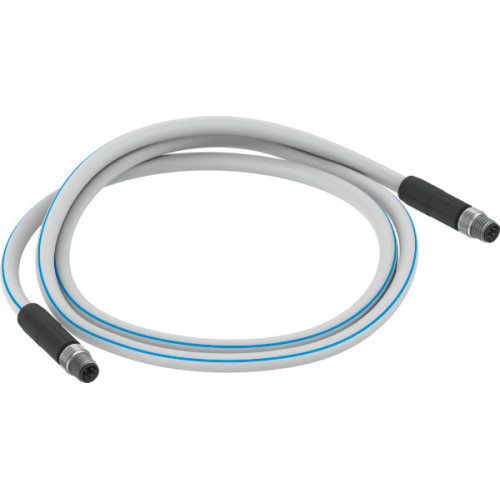

NEBC-D8G4-ES-0.5-N-S-D8G4-ET Connecting cable

Manufacturer's No: NEBC-D8G4-ES-0.5-N-S-D8G4-ET     Manufacturer: Festo
NEBC-D8G4-ES-0.5-N-S-D8G4-ET Connecting cable

Availability Back Order

£27.32
  • Cable based on standard: EN 61076-2-114
  • Approval: c UL us (OL)
  • Cable designation: Without inscription label holder
  • Product weight: 43 g
  • Frequency of connection: 100 Hz
  • Electrical connections: M8x1, D-coded according to EN 61076-2-114
  • Number of connections/cores: 4
  • Operational voltage range DC: 0-30 V
  • Nominal operating voltage DC: 24 V
  • Current rating at 40°C: 3 A

Read more

  • Immunity to surge: 1.5 KV
  • Shielding: Yes
  • Cable length: 0.5 m
  • Cable characteristic: Suitable for energy chains
  • Bending radius: Fixed cable 20 mm, moving cable 75 mm
  • Cable diameter: 6.3 mm
  • Cable structure: 1 x (4 x AWG22)
  • Degree of protection: IP65, IP67
  • Special characteristics: Oil resistant
  • Ambient temperature: -20°C to 60°C
  • Storage temperature: -40°C to 70°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Pollution degree: 3
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Material cable sheath: TPE-U(PUR)
  • Cable sheath colour: Silver-grey with sky blue stripe
  • Material housing: PA, TPE-U(PUR)
  • Housing colour: Black
  • Material screw-type lock: Nickel-plated brass
  • Material seals: NBR
  • Material electrical contact: Gold-plated copper alloy
  • Material insulating sheath: PP


Product

Manufacturer Material ID -
NEBC-D8G4-ES-0.5-N-S-D8G4-ET
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
