8082383

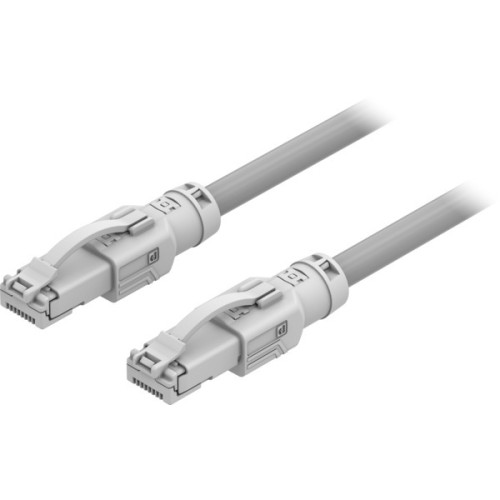

NEBC-R3G8-KS-0.2-N-S-R3G8-ET Connecting cable

Manufacturer's No: NEBC-R3G8-KS-0.2-N-S-R3G8-ET     Manufacturer: Festo
NEBC-R3G8-KS-0.2-N-S-R3G8-ET Connecting cable

Availability Back Order

£10.44
  • Cable designation: NEBC-R3G8-KS-0.2-N-S-R3G8-ET
  • Product weight: 15 g
  • Electrical connection 1: Field device side, Angular design, RJ45 connector, 8 connections/cores
  • Electrical connection 2: Controller side, Angular design, RJ45 connector, 8 connections/cores
  • Operational voltage range DC: 0 V to 50 V
  • Current rating at 40°C: 1.5 A
  • Immunity to surge: 2.5 KV
  • Shielding: Yes
  • Cable length: 0.2 m
  • Cable diameter: 5 mm

Read more

  • Cable structure: 4 x 2 x 0.16 mm²
  • Nominal cross-section conductor: 0.16 mm²
  • Degree of protection: IP20
  • Ambient temperature: -20°C to 60°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Pollution degree: 2
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Material cable sheath: PVC, Grey color
  • Material housing: PVC, Grey color
  • Material insulating sheath: PVC


Product

Manufacturer Material ID -
NEBC-R3G8-KS-0.2-N-S-R3G8-ET
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability Back Order

£10.44
