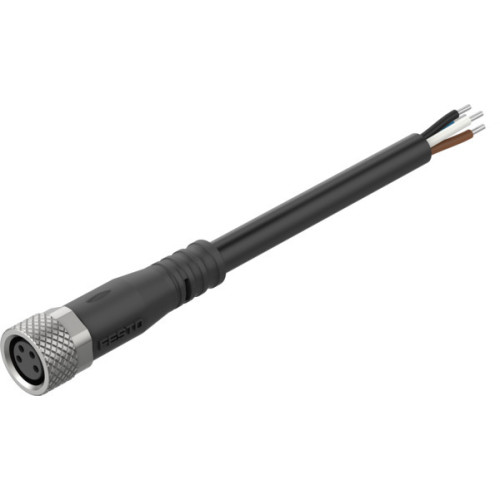

NEBL-M8G4-E-5-N-LE4 Connecting cable

Manufacturer's No: NEBL-M8G4-E-5-N-LE4     Manufacturer: Festo
NEBL-M8G4-E-5-N-LE4 Connecting cable

Availability Back Order

£18.44
  • Conforms to standard: EN 61076-2-104
  • Approval: c UL us listed (OL)
  • Certificate issuing authority: UL E253748
  • Product weight: 183 g
  • Cable designation: Without inscription label holder
  • Electrical connection 1: Field device side, M8x1, A-coded, 4 connections/cores
  • Electrical connection 2: Controller side, Open end, 4 connections/cores
  • Operational voltage range DC: 0-30 V, Nominal operating voltage DC: 24 V
  • Operational voltage range AC: 0-30 V, Nominal operating voltage AC: 24 V
  • Current rating at 40°C: 5.2 A, Immunity to surge: 0.8 KV

Read more

  • Cable length: 5 m, Cable characteristic: Suitable for energy chains
  • Bending radius: Fixed cable 15 mm, Moving cable 50 mm
  • Cable diameter: 4.8 mm, Cable structure: 4 x 0.5 mm²
  • Degree of protection: IP65, IP67, IP69K (In assembled state)
  • Special characteristics: Oil resistant
  • Ambient temperature: -40°C to 90°C, Moving cable: -20°C to 90°C
  • Storage temperature: -40°C to 90°C
  • CE mark: In accordance with EU RoHS Directive, UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Materials: RoHS-compliant, Free of halogen
  • Pollution degree: 3, Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • Cable sheath material: TPE-U(PUR), Colour: Black
  • Housing material: TPE-U(PUR), Colour: Black
  • Screw-type lock material: Nickel-plated brass
  • Seals material: FPM, Electrical contact material: Gold-plated copper alloy
  • Insulating sheath material: PP


Product

Manufacturer Material ID -
NEBL-M8G4-E-5-N-LE4
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
BG
UNSPSC -
26121629
Festo

Availability Back Order

£18.44
