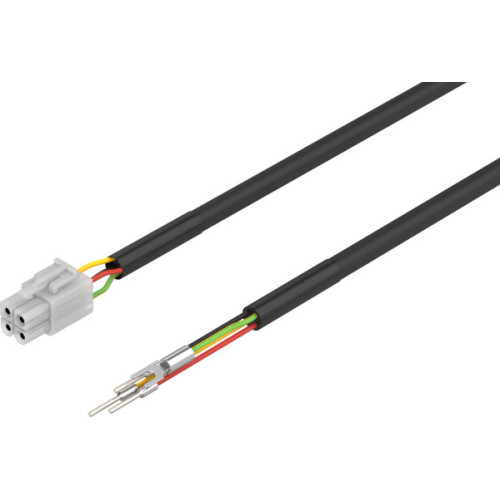

NEBM-H6G4-E-5-Q13N-LE4 Motor cable

Manufacturer's No: NEBM-H6G4-E-5-Q13N-LE4     Manufacturer: Festo
NEBM-H6G4-E-5-Q13N-LE4 Motor cable

Availability Back Order

£55.69
  • Motor cable NEBM-H6G4-E-5-Q13N-LE4
    • Socket connection pattern H6 (coded for motor)
    • Straight; 4-pin/-wire; PVC cable
    • Length: 5 meters; Cross-section: 0.79 mm²
    • Suitable for energy chains
    • Electrical connection 1: Field device side, 4-pin/-wire, angular design
    • Electrical connection 2: Controller side, open end cable
    • Operational voltage range: 0-300 V DC, 0-300 V AC
    • Current rating at 40°C: 9.5 A; Surge immunity: 2 KV
    • Bending radius: 55 mm (fixed and moving cable)
    • Cable diameter: 7.3 mm; Cable structure: 4 x 0.79 mm²
    • Conductor nominal cross-section: 0.79 mm² (AWG18)
    • Degree of protection: IP20; RoHS-compliant
    • Ambient temperature: -25°C to 90°C (moving cable)
    • CE mark: EU Low Voltage Directive, EU RoHS Directive
    • UKCA marking: UK RoHS instructions, UK regulations for electrical equipment
    • LABS (PWIS) conformity: VDMA24364 zone III
    • Pollution degree: 3; Corrosion resistance class: 0
    • Cable sheath material: PVC, black color
    • Housing material: PA, white color
    • Insulating sheath material: PVC
  • Socket connection pattern H6 (coded for motor)
  • Straight; 4-pin/-wire; PVC cable
  • Length: 5 meters; Cross-section: 0.79 mm²
  • Suitable for energy chains
  • Electrical connection 1: Field device side, 4-pin/-wire, angular design
  • Electrical connection 2: Controller side, open end cable
  • Operational voltage range: 0-300 V DC, 0-300 V AC
  • Current rating at 40°C: 9.5 A; Surge immunity: 2 KV
  • Bending radius: 55 mm (fixed and moving cable)

Read more

  • Cable diameter: 7.3 mm; Cable structure: 4 x 0.79 mm²
  • Conductor nominal cross-section: 0.79 mm² (AWG18)
  • Degree of protection: IP20; RoHS-compliant
  • Ambient temperature: -25°C to 90°C (moving cable)
  • CE mark: EU Low Voltage Directive, EU RoHS Directive
  • UKCA marking: UK RoHS instructions, UK regulations for electrical equipment
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Pollution degree: 3; Corrosion resistance class: 0
  • Cable sheath material: PVC, black color
  • Housing material: PA, white color
  • Insulating sheath material: PVC


Product

Manufacturer Material ID -
NEBM-H6G4-E-5-Q13N-LE4
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
UNSPSC -
26121629
Festo

Availability Back Order

£55.69
