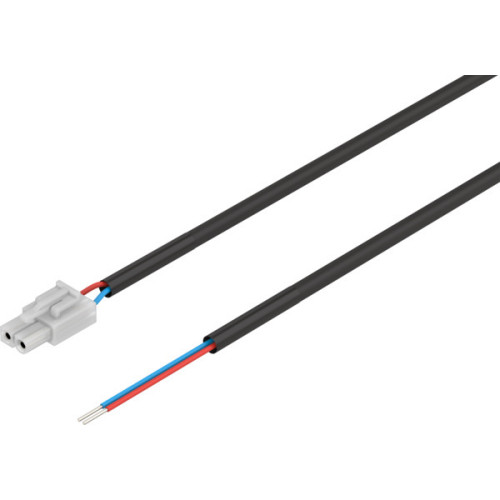

NEBM-H7G2-E-15-Q14N-LE2 Connecting cable

Manufacturer's No: NEBM-H7G2-E-15-Q14N-LE2     Manufacturer: Festo
NEBM-H7G2-E-15-Q14N-LE2 Connecting cable

Availability On Request

£111.38
  • Cable designation: Without inscription label holder
  • Electrical connection 1: Field device side, Angular design, Socket connection, Straight cable outlet
  • Connector system: Connection pattern H7, coded for motor brake
  • Number of connections/cores: 2
  • Operational voltage range DC: 0-30 V
  • Operational voltage range AC: 0-30 V
  • Current rating at 40°C: 5 A
  • Surge immunity: 2 KV
  • Cable length: 15 meters
  • Cable characteristic: Suitable for energy chains

Read more

  • Bending radius: Fixed cable 27 mm, Moving cable 55 mm
  • Cable diameter: 5.1 mm, Cable structure: 2 x 0.51 mm²
  • Conductor nominal cross section: 0.51 mm² (AWG20)
  • Wire ends: Wire ferrule
  • Degree of protection: IP20 (In assembled state)
  • Ambient temperature: -40°C to 80°C, Moving cable: -10°C to 80°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Materials: RoHS-compliant, PVC cable sheath (Black), PA housing (White), PVC insulating sheath
  • Pollution degree: 3
  • Corrosion resistance class CRC: 0 (No corrosion stress)


Product

Manufacturer Material ID -
NEBM-H7G2-E-15-Q14N-LE2
Net Weight -
0.76kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
UNSPSC -
26121629
