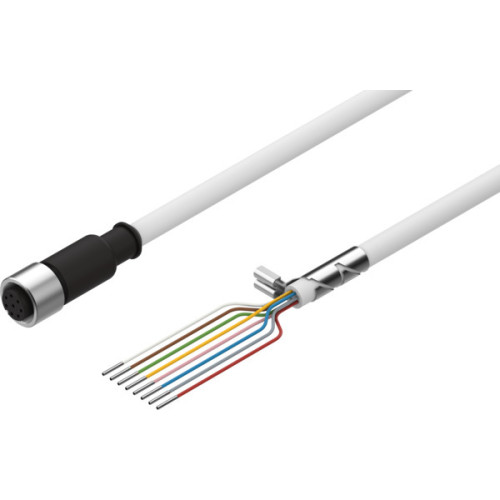

NEBM-M12G8-E-10-LE8 Encoder cable

Manufacturer's No: NEBM-M12G8-E-10-LE8     Manufacturer: Festo
NEBM-M12G8-E-10-LE8 Encoder cable

Availability Back Order

£133.56
  • NEBM-M12G8-E-10-LE8 Encoder cable
  • Socket M12 (A-coded), Straight, 8-pin/-wire
  • Cable Length: 10 meters, Cable Diameter: 6.8 mm
  • Cable Structure: 4 x 2 x 0.14 mm², Nominal Cross Section Conductor: 0.14 mm²
  • Suitable for energy chains, With label holder, Open end
  • Electrical Connection 1: Field device side, M12x1, A-coded to EN 61076-2-101
  • Electrical Connection 2: Controller side, Open end
  • Operational Voltage Range DC: 0-30 V, Nominal Operating Voltage DC: 24 V
  • Operational Voltage Range AC: 0-30 V, Nominal Operating Voltage AC: 24 V
  • Shielding: Yes, Degree of Protection: IP65

Read more

  • Bending Radius, Moving Cable: 68 mm
  • Ambient Temperature: -40°C to 80°C, With moving cable: -5°C to 80°C
  • CE Mark: In accordance with EU RoHS Directive
  • UKCA Marking: To UK RoHS instructions
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Material Cable Sheath: TPE-U(PUR), Cable Sheath Colour: Grey


Product

Manufacturer Material ID -
NEBM-M12G8-E-10-LE8
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
