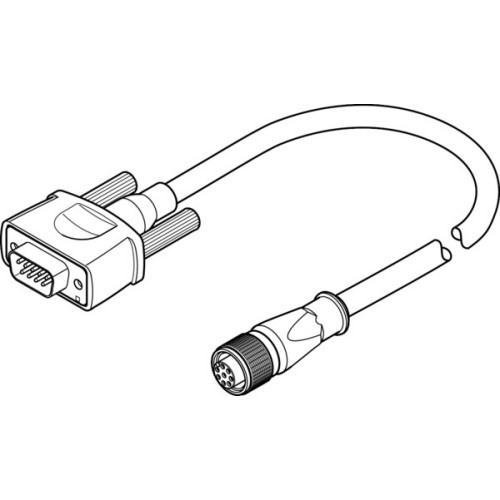

NEBM-M12G8-E-10-S1G9 Encoder cable

Manufacturer's No: NEBM-M12G8-E-10-S1G9     Manufacturer: Festo
NEBM-M12G8-E-10-S1G9 Encoder cable

Availability On Request

£159.64
  • Encoder cable NEBM-M12G8-E-10-S1G9
  • Socket M12 (A-coded), 8-pin/-wire, TPE-U(PUR) cable, 10m length, 0.25mm²
  • Suitable for energy chains, with label holder
  • Sub-D plug, 9-pin/-wire, straight, without inscription label holder
  • Electrical connection 1: Field device side, M12x1 A-coded socket, 8 connections/cores
  • Electrical connection 2: Controller side, Sub-D plugs, 8 used connections/cores
  • Operational voltage range DC: 0-30V, Nominal operating voltage DC: 24V
  • Operational voltage range AC: 0-30V, Nominal operating voltage AC: 24V
  • Shielding: yes, Cable length: 10m, Suitable for energy chains
  • Bending radius (moving cable): 49mm, Cable diameter: 6.5mm

Read more

  • Cable structure: 4 x 2 x 0.14mm², Nominal cross-section conductor: 0.14mm²
  • Degree of protection: IP65, Note: IP30 for Sub-D plug connector
  • Ambient temperature: -40°C to 70°C, Ambient temperature with moving cable: -40°C to 70°C
  • CE mark: In accordance with EU RoHS Directive, UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L, RoHS-compliant materials
  • Cable sheath: TPE-U(PUR), Cable sheath color: Grey


Product

Manufacturer Material ID -
NEBM-M12G8-E-10-S1G9
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
