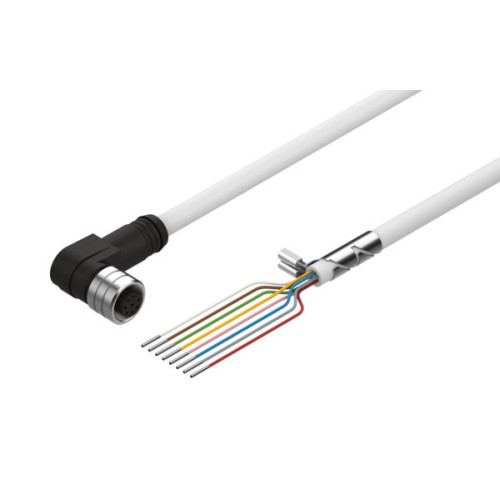

NEBM-M12W8-E-10-LE8 Encoder cable

Manufacturer's No: NEBM-M12W8-E-10-LE8     Manufacturer: Festo
NEBM-M12W8-E-10-LE8 Encoder cable

Availability On Request

£133.56
  • Encoder cable NEBM-M12W8-E-10-LE8
  • Socket M12 (A-coded), angled, 8-pin/-wire
  • Cable length: 10 meters, cable diameter: 6.8 mm
  • Suitable for energy chains, with label holder and open end
  • Electrical connection 1: M12x1, A-coded to EN 61076-2-101, 8-pin/-wire
  • Electrical connection 2: Open end, 8 connections/cores
  • Operational voltage range DC: 0-30 V, nominal operating voltage DC: 24 V
  • Operational voltage range AC: 0-30 V, nominal operating voltage AC: 24 V
  • Shielding: yes, degree of protection: IP65
  • Bending radius for moving cable: 68 mm

Read more

  • Cable structure: 4 x 2 x 0.14 mm², nominal cross-section conductor: 0.14 mm²
  • Ambient temperature: -40°C to 80°C, with moving cable: -5°C to 80°C
  • CE mark: In accordance with EU RoHS Directive, UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L, RoHS-compliant materials
  • Cable sheath material: TPE-U(PUR), color: Grey


Product

Manufacturer Material ID -
NEBM-M12W8-E-10-LE8
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability On Request

£133.56
