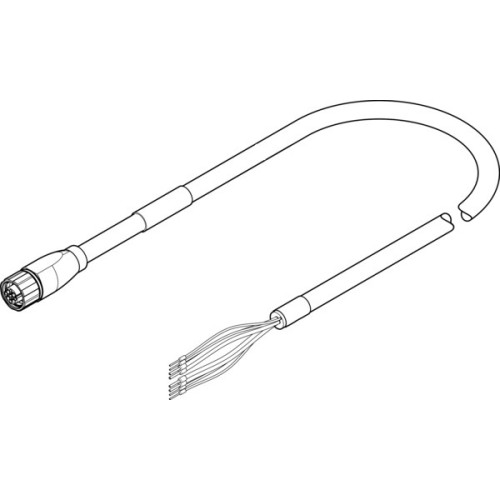

NEBM-M16G8-E-2.5-Q7-LE8-1 Motor cable

Manufacturer's No: NEBM-M16G8-E-2.5-Q7-LE8-1     Manufacturer: Festo
NEBM-M16G8-E-2.5-Q7-LE8-1 Motor cable

Availability Back Order

£176.89
  • Motor cable NEBM-M16G8-E-2.5-Q7-LE8-1 - Cable length: 2.5 m - Cable diameter: 11 mm - Suitable for energy chains - Shielding: yes - Bending radius: 55 mm (fixed), 110 mm (moving) - Cable structure: 4 x 0.75 mm² + 2 x (2 x 0.25 mm²) - Nominal cross section conductor: 0.25 mm², 0.75 mm² - Degree of protection: IP65 - Ambient temperature: -50°C to 90°C - CE mark: Low Voltage Directive, RoHS Directive - UKCA marking: RoHS instructions, UK regulations for electrical equipment - LABS (PWIS) conformity: VDMA24364-B2-L - Material cable sheath: TPE-U(PUR) - Cable sheath colour: Orange

  • Electrical Connections - Field device side: M16x0.75 socket, 8 connections/cores (6 used) - Controller side: Open end cable, 8 connections/cores (6 used)

  • Electrical Specifications - Operational voltage range DC: 0 V to 600 V - Operational voltage range AC: 0 V to 600 V - Current rating at 40°C: 12 A - Immunity to surge: 6 kV

  • Cable Details - Cable TPE-U(PUR) - Cable designation: Without inscription label holder - Cable weight: 450 g - Cable characteristic: Suitable for energy chains - Cable ends: Wire ferrule to DIN 46228-A..-10, DIN 46228-E..-10



Product

Manufacturer Material ID -
NEBM-M16G8-E-2.5-Q7-LE8-1
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability Back Order

£176.89
