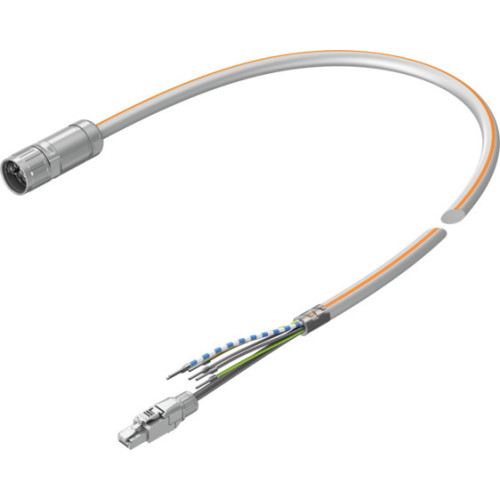

NEBM-M23G15-EH-10-Q7N-R3LEG14 Motor cable

Manufacturer's No: NEBM-M23G15-EH-10-Q7N-R3LEG14     Manufacturer: Festo
NEBM-M23G15-EH-10-Q7N-R3LEG14 Motor cable

Availability Back Order

£267.33
  • Motor cable NEBM-M23G15-EH-10-Q7N-R3LEG14
    • Hybrid socket M23
    • Straight; 15-pin/-wire
    • Cable TPE-U(PUR); shielded
    • Length: 10 m; 0.75 mm²
    • Plug RJ45 and open end; 14-pin/-wire
    • Operational voltage range DC: 0-850 V; AC: 0-630 V
    • Current rating at 40°C: 11.7 A
    • Immunity to surge: 6 KV
    • Shielding: yes
    • Cable length: 10 m
    • Suitable for energy chains
    • Bending radius: fixed 48 mm, moving 90 mm
    • Cable diameter: 12 mm
    • Cable structure: 4 x 0.75 mm² + 1 x (2 x 0.75 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)
    • Degree of protection: IP67
    • Ambient temperature: -40°C to 90°C; moving cable: -25°C to 80°C
    • CE mark: Low Voltage Directive, EU RoHS Directive
    • UKCA marking: UK RoHS instructions, UK regulations for electrical equipment
    • LABS (PWIS) conformity: VDMA24364-B2-L
    • Materials: RoHS-compliant, halogen-free
    • Pollution degree: 1
    • Corrosion resistance class CRC: 1 (Low corrosion stress)
    • Cable sheath: TPE-U(PUR); Grey
    • Insulating sheath: PP
  • Hybrid socket M23
  • Straight; 15-pin/-wire
  • Cable TPE-U(PUR); shielded
  • Length: 10 m; 0.75 mm²
  • Plug RJ45 and open end; 14-pin/-wire
  • Operational voltage range DC: 0-850 V; AC: 0-630 V
  • Current rating at 40°C: 11.7 A
  • Immunity to surge: 6 KV
  • Shielding: yes

Read more

  • Cable length: 10 m
  • Suitable for energy chains
  • Bending radius: fixed 48 mm, moving 90 mm
  • Cable diameter: 12 mm
  • Cable structure: 4 x 0.75 mm² + 1 x (2 x 0.75 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)
  • Degree of protection: IP67
  • Ambient temperature: -40°C to 90°C; moving cable: -25°C to 80°C
  • CE mark: Low Voltage Directive, EU RoHS Directive
  • UKCA marking: UK RoHS instructions, UK regulations for electrical equipment
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Materials: RoHS-compliant, halogen-free
  • Pollution degree: 1
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Cable sheath: TPE-U(PUR); Grey
  • Insulating sheath: PP


Product

Manufacturer Material ID -
NEBM-M23G15-EH-10-Q7N-R3LEG14
Net Weight -
2.23kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
BG
UNSPSC -
26121629
