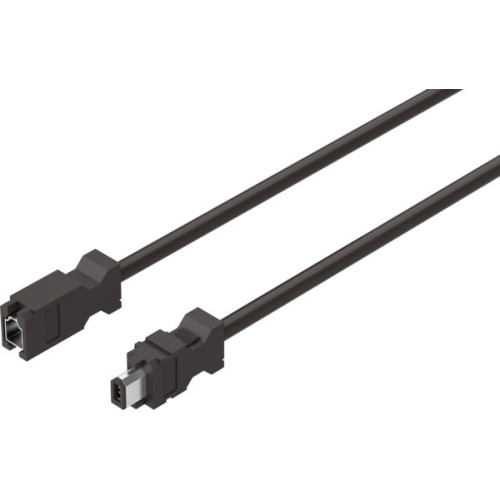

NEBM-REG6-E-5-Q14N-REG6 Encoder cable

Manufacturer's No: NEBM-REG6-E-5-Q14N-REG6     Manufacturer: Festo
NEBM-REG6-E-5-Q14N-REG6 Encoder cable

Availability Back Order

£45.95
  • NEBM-REG6-E-5-Q14N-REG6 Encoder cable - Cable length: 5 m - Cable diameter: 7.4 mm - Cable structure: 2 x 0.51 mm² + 4 x 0.205 mm² - Suitable for energy chains - Bending radius: 55 mm - Material cable sheath: PVC - Cable sheath color: Black

  • Electrical Connections - Number of connections/cores: 6 - Connection type: Socket (Field device side) and Plugs (Controller side) - Design: Angular - Connector system: Connection pattern RE

  • Electrical Specifications - Operational voltage range DC: 0-30 V - Operational voltage range AC: 0-30 V - Current rating at 40°C: 1.6 A - Immunity to surge: 2 KV

  • Environmental Conditions - Ambient temperature: -40°C to 80°C - Bending radius for moving cable: 55 mm - Pollution degree: 3 - Corrosion resistance class CRC: 0 (No corrosion stress)

  • Compliance and Markings - CE mark: In accordance with EU RoHS Directive - UKCA marking: To UK RoHS instructions - LABS (PWIS) conformity: VDMA24364 zone III - RoHS-compliant materials

  • Other - Cable designation: Without inscription label holder - Note on degree of protection: In assembled state - Material housing: PVC (Grey) - Nominal cross section conductor: 0.51 mm² and 0.205 mm² - Conductor nominal cross section: AWG20 and AWG24



Product

Manufacturer Material ID -
NEBM-REG6-E-5-Q14N-REG6
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
UNSPSC -
26121629
Festo

Availability Back Order

£45.95
