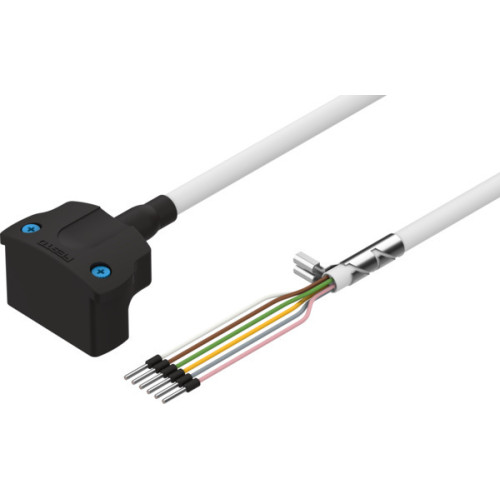

NEBM-S1W15-E-7-Q7-LE6 Motor cable

Manufacturer's No: NEBM-S1W15-E-7-Q7-LE6     Manufacturer: Festo
NEBM-S1W15-E-7-Q7-LE6 Motor cable

Availability On Request

£134.96
  • Motor cable NEBM-S1W15-E-7-Q7-LE6 - Cable Type: TPE-U(PUR) - Length: 7m - Cross-Sectional Area: 0.75 mm² - Suitable for energy chains - Cable Diameter: 8mm - Shielding: Yes - Bending Radius (moving cable): 80mm - Operating Voltage Range: 0V to 72V - Nominal Operating Voltage: 24V - CE Mark: In accordance with EU RoHS Directive - UKCA Marking: To UK RoHS instructions - LABS (PWIS) Conformity: VDMA24364-B2-L - Corrosion Resistance Class: 0 - No corrosion stress - Material Cable Sheath: TPE-U(PUR) - Cable Sheath Color: Grey

  • Electrical Connections - Field Device Side - Design: Angular - Connection Type: Socket - Connector System: Sub-D - Number of Connections/Cores: 15 - Used Connections/Cores: 10 - Connection Pattern: 995640 - Controller Side - Connection Type: Cable - Connector System: Open end - Number of Connections/Cores: 6 - Used Connections/Cores: 6

  • Cable Structure - 6 x 0.75 mm² - Wire Ends: Wire ferrule

  • Ambient Temperature - Static: -40°C to 80°C - Moving Cable: -5°C to 80°C - Note: In assembled state

  • Note on Materials - RoHS-compliant



Product

Manufacturer Material ID -
NEBM-S1W15-E-7-Q7-LE6
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
