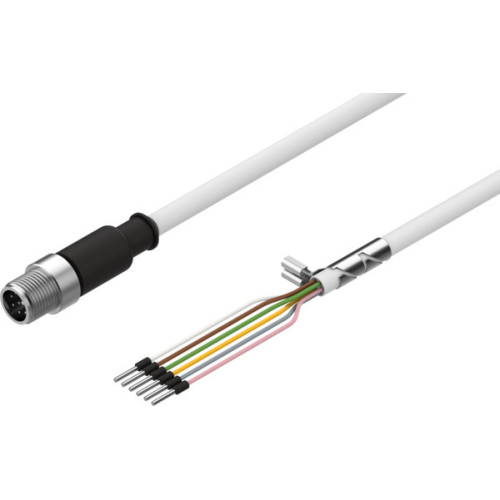

NEBM-SM12G8-E-10-Q5-LE6 Motor cable

Manufacturer's No: NEBM-SM12G8-E-10-Q5-LE6     Manufacturer: Festo
NEBM-SM12G8-E-10-Q5-LE6 Motor cable

Availability Back Order

£120.91
  • Motor cable NEBM-SM12G8-E-10-Q5-LE6 - Cable length: 10 meters - Cable diameter: 6.2 mm - Cable structure: 6 x 0.34 mm² - Suitable for energy chains - Shielding: yes - Bending radius, moving cable: 62 mm - Material cable sheath: TPE-U(PUR) - Cable sheath color: Grey

  • Plug M12 (A-coded) - Straight - 8-pin/-wire - Cable TPE-U(PUR) - With label holder - Open end - Cable designation: Without inscription label holder

  • Electrical Connection 1 (Field device side) - Design: Round - Connection type: Plugs - Cable outlet: Straight - Connector system: M12x1, A-coded to EN 61076-2-101 - Number of connections/cores: 8 - Used connections/cores: 6 - Connection pattern: 992264

  • Electrical Connection 2 (Controller side) - Connection type: Cable - Connector system: Open end - Number of connections/cores: 6 - Used connections/cores: 6

  • Electrical Specifications - Operational voltage range DC: 0 V to 72 V - Nominal operating voltage DC: 24 V

  • Environmental Specifications - Ambient temperature: -40°C to 80°C - Ambient temperature with moving cable: -5°C to 80°C

  • Compliance and Markings - CE mark: In accordance with EU RoHS Directive - UKCA marking: To UK RoHS instructions - LABS (PWIS) conformity: VDMA24364-B2-L - RoHS-compliant materials



Product

Manufacturer Material ID -
NEBM-SM12G8-E-10-Q5-LE6
Net Weight -
0.57kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability Back Order

£120.91
