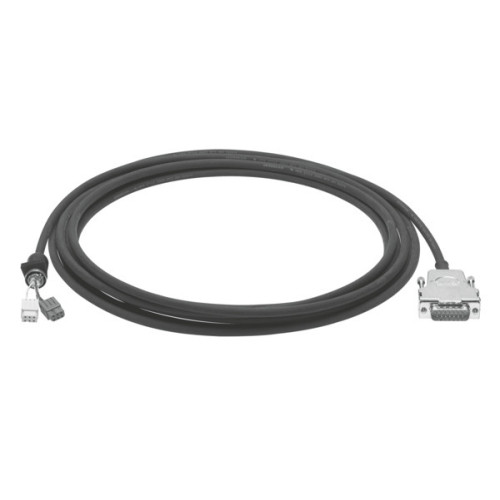

NEBM-T1G8-E-25-N-S1G15 Encoder cable

Manufacturer's No: NEBM-T1G8-E-25-N-S1G15     Manufacturer: Festo
NEBM-T1G8-E-25-N-S1G15 Encoder cable

Availability On Request

£354.35
  • Encoder cable NEBM-T1G8-E-25-N-S1G15 - Length: 25m - Cable Diameter: 5.8mm - Suitable for energy chains - Cable Structure: 1 x 4 x 0.15 mm² + 4 x 0.34 mm² - Nominal Cross Section Conductor: 0.15 mm², 0.34 mm²

  • Electrical Connections - Field Device Side: ITT M3 Socket, 12-pin - Controller Side: Sub-D Plug, 15-pin - Operational Voltage Range DC: 0-30V - Nominal Operating Voltage DC: 24V - Operational Voltage Range AC: 0-30V - Nominal Operating Voltage AC: 24V

  • Cable Properties - Shielding: Yes - Bending Radius (moving cable): 48mm - Degree of Protection: IP65 - Ambient Temperature: -40°C to 80°C - CE Mark: EU RoHS Directive compliant - UKCA Mark: UK RoHS compliant - LABS (PWIS) Conformity: VDMA24364-B2-L - Material Cable Sheath: TPE-U(PUR)



Product

Manufacturer Material ID -
NEBM-T1G8-E-25-N-S1G15
Net Weight -
1.46kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability On Request

£354.35
