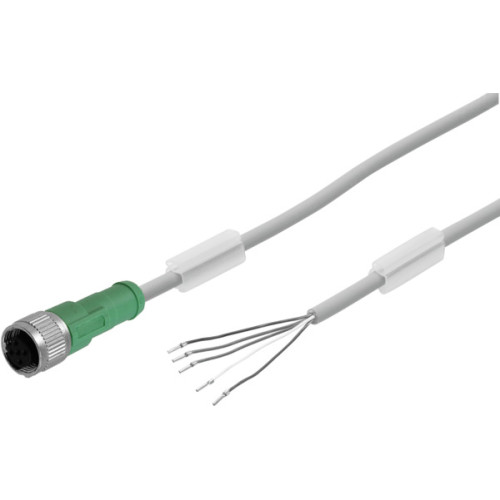

NEBS-M12G5-ES-15-LE5 Connecting cable

Manufacturer's No: NEBS-M12G5-ES-15-LE5     Manufacturer: Festo
NEBS-M12G5-ES-15-LE5 Connecting cable

Availability On Request

£64.67
  • Cable designation: NEBS-M12G5-ES-15-LE5
  • Product weight: 828 g
  • Cable length: 15 m
  • Electrical connection 1:
    • Function: Field device side
    • Design: Round
    • Connection type: Socket
    • Cable outlet: Straight
    • Connector system: M12x1, A-coded to EN 61076-2-101
    • Number of connections/cores: 5
    • Type of mounting: Screw-type lock
  • Electrical connection 2:
    • Function: Controller side
    • Connection type: Cable
    • Connector system: Open end
    • Number of connections/cores: 5
  • Operational voltage range DC: 0 V to 60 V
  • Operational voltage range AC: 0 V to 48 V
  • Current rating at 40°C: 4 A
  • Immunity to surge: 1.5 KV
  • Shielding: Yes

Read more

  • Cable characteristic: Suitable for energy chains
  • Bending radius:
    • Fixed cable: 26 mm
    • Moving cable: 52 mm
  • Cable diameter: 5.25 mm
  • Cable diameter tolerance: ± 0.2 mm
  • Cable structure: 5 x 0.34 mm²
  • Nominal cross section conductor: 0.34 mm²
  • Wire ends: Cut off bluntly
  • Degree of protection: IP65, IP67
  • Ambient temperature:
    • Fixed cable: -40°C to 80°C
    • Moving cable: -25°C to 60°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Materials:
    • Cable sheath: TPE-U(PUR), black
    • Seals: NBR
    • Electrical contact: Nickel-plated and gold-plated bronze
    • Insulating sheath: PP
  • Note on materials: RoHS-compliant
  • Pollution degree: 3


Product

Manufacturer Material ID -
NEBS-M12G5-ES-15-LE5
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
