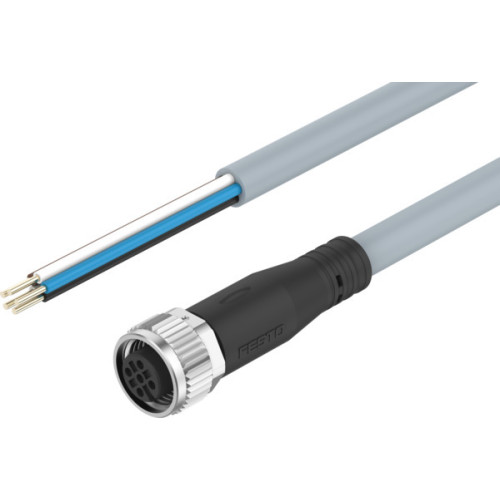

NEBU-M12G5-E-10-Q8N-LE5 Connecting cable

Manufacturer's No: NEBU-M12G5-E-10-Q8N-LE5     Manufacturer: Festo
NEBU-M12G5-E-10-Q8N-LE5 Connecting cable

Availability On Request

£90.25
  • Conforms to standards: EN 61076-2-101, IEC 61010-1
  • Cable designation: Without inscription label holder
  • Frequency of connection: 100 Hz
  • Product weight: 822 g
  • Electrical connection 1: Field device side, Round design, Socket connection type, M12x1 A-coded connector system, 5 cores, Screw-type lock mounting, 995384 connection pattern
  • Electrical connection 2: Controller side, Cable connection type, Open end connector system, 5 cores
  • Operational voltage range: 0-60 V DC, 0-60 V AC
  • Current rating at 40°C: 4 A
  • Immunity to surge: 1.5 kV
  • Cable length: 10 m

Read more

  • Cable characteristic: Suitable for energy chains
  • Bending radius: Fixed cable - 21 mm, Moving cable - 71 mm
  • Cable diameter: 7 mm, ± 0.1 mm tolerance
  • Cable structure: 5 x 1 mm², Nominal cross-section conductor: 1.2 mm²
  • Degree of protection: IP65, IP68, IP69K (In assembled state)
  • Special characteristics: Oil resistant
  • Ambient temperature: -25°C to 80°C, Moving cable: -5°C to 80°C
  • CE mark: EU Low Voltage Directive, EU RoHS Directive
  • UKCA marking: UK RoHS instructions, UK regulations for electrical equipment
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Materials: RoHS-compliant, Halogen-free, Phosphoric acid ester-free
  • Pollution degree: 3
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • Cable sheath material: TPE-U(PUR), Grey color
  • Housing material: TPE-U(PUR), Black color
  • Screw-type lock material: Nickel-plated brass
  • Seals material: NBR
  • Electrical contact material: Gold-plated copper alloy
  • Insulating sheath material: PP


Product

Manufacturer Material ID -
NEBU-M12G5-E-10-Q8N-LE5
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
TR
UNSPSC -
30102206
Festo

Availability On Request

£90.25
