8048086

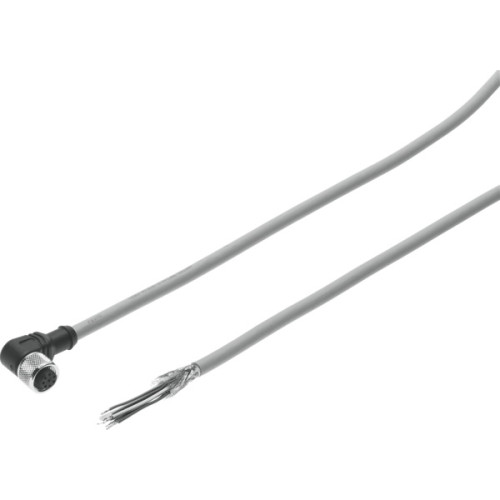

NEBU-M12W8-K-15-N-LE8 Plug socket with cable

Manufacturer's No: NEBU-M12W8-K-15-N-LE8     Manufacturer: Festo
NEBU-M12W8-K-15-N-LE8 Plug socket with cable

Availability On Request

£92.78
  • Socket Type: M12 (A-coded), 8-pin/wire
  • Cable: TPE-U(PUR), Shielded, 15m, 0.25mm², Open end
  • Electrical Connection 1: Field device side, Round design, Socket connection, Angled cable outlet, Screw-type lock, Rotatable, M12x1 A-coded connector system
  • Electrical Connection 2: Controller side, Cable connection, Open end connector system
  • Voltage Range: 0-30V DC, 0-30V AC
  • Current Rating: 2A at 40°C
  • Surge Immunity: 0.8KV
  • Shielding: Yes
  • Cable Dimensions: 6.3mm diameter, 15m length
  • IP Rating: IP67

Read more

  • Temperature Range: -25°C to 80°C (stationary cable), -5°C to 80°C (moving cable)
  • Compliance: CE, UKCA, RoHS Directive, VDMA24364-B2-L
  • Materials: TPE-U(PUR) cable sheath, Grey color, Brass chrome-plated screw-type lock, NBR seals, Gold-plated copper alloy electrical contacts, PP insulating sheath


Product

Manufacturer Material ID -
NEBU-M12W8-K-15-N-LE8
Net Weight -
0.84kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability On Request

£92.78
