1514120

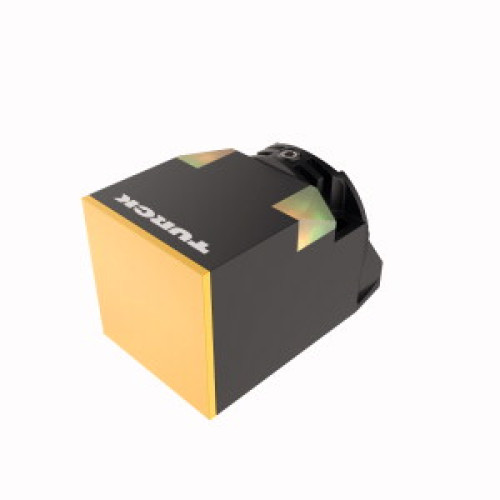

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI50U-CK40-VP4X2-H1141/3GD     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£150.20
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-65 VDC

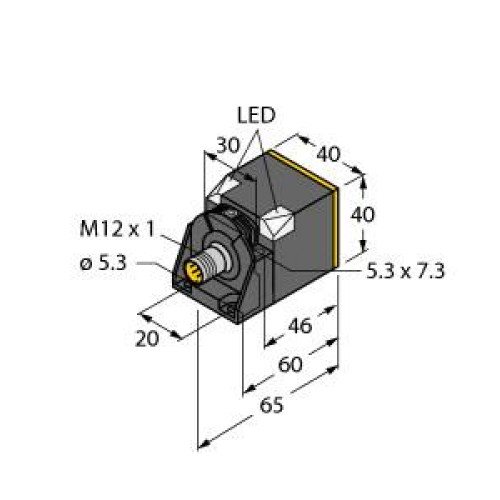

  • Rated switching distance: 50 mm
  • Non-flush, rectangular design with a height of 40 mm
  • Variable orientation of active face in 5 directions
  • Material: Plastic (PBT-GF30-V0)
  • High luminance corner LEDs for optimum visibility
  • Factor 1 for all metals
  • Protection class: IP68
  • Resistant to magnetic fields

Read more

  • Auto-compensation protects against pre-damping
  • Partially embeddable
  • DC 4-wire with changeover contact
  • PNP output
  • M12 x 1 male connector
  • ATEX category II 3 G, Ex zone 2
  • ATEX category II 3 D, Ex zone 22


Product

Manufacturer Material ID -
NI50U-CK40-VP4X2-H1141/3GD
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
65 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
50 Millimetre
Switching frequency -
250 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
40 Millimetre
