OBE10M-18GM60-SE4-IR-1C

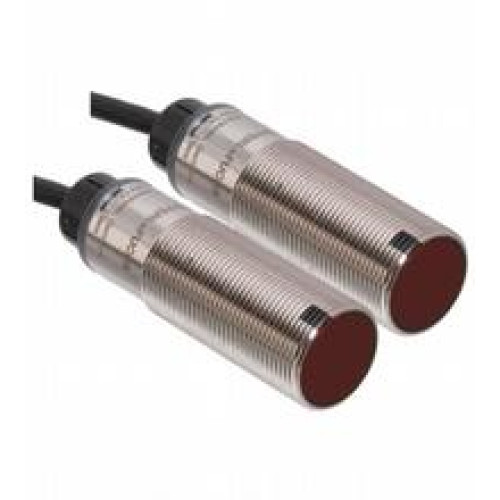

Thru-beam sensor - Effective detection range: 0 ... 10 m, Light source: IRED, Light type: Infrared LED, Signal output: 1 NPN outpu

Manufacturer's No: 70134679     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 10 m, Light source: IRED, Light type: Infrared LED, Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collec..

Availability On Request

£84.26
  • Detection Range: 0 to 10 meters
  • Light Source: IRED (Infrared LED)
  • Signal Output: 1 NPN output (short-circuit and reverse polarity protected, open collector)
  • Switching Type: Adjustable, default setting: Q - Pin4: NPN output / light-on L/D-On - WH: Low-active input
  • Connection: 2-meter fixed cable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
70134679
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
VN
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£84.26
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
