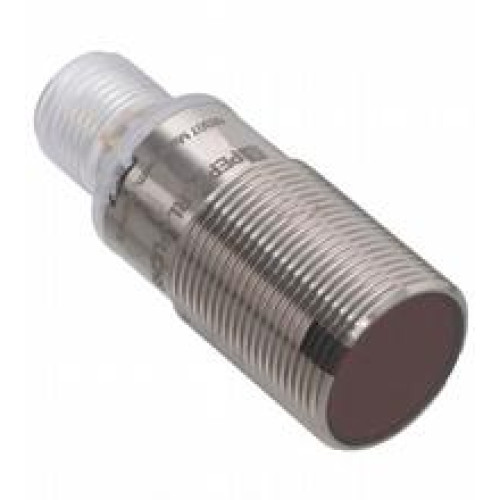

Triangulation sensor (BGS) OBT150-18GM40-E2-V1

Manufacturer's No: OBT150-18GM40-E2-V1     Manufacturer: Pepperl+Fuchs
Triangulation sensor (BGS) OBT150-18GM40-E2-V1

Availability On Request

£84.26
Detection range: 10 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching type: Q - Pin4: PNP normally open / light-on, Connection: 3-pin, M12 x 1 connector, Operating voltage: 10 ... 30 V DC, Ambient temperature: -40 ... 60 °C (-40 ... 140 °F)


Product

Manufacturer Material ID -
OBT150-18GM40-E2-V1
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
VN
UNSPSC -
41111926

Technical Specification

Diameter sensor -
18 Millimetre
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Housing material -
Metal
Length of sensor -
45.1 Millimetre
Material of optical surface -
Plastic
Operating distance -
10 Millimetre
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Breaker contact (NC)
Type of switching output -
PNP
Voltage type -
DC
Pepperl+Fuchs

Availability On Request

£84.26
