OCS2000-M1K-N2

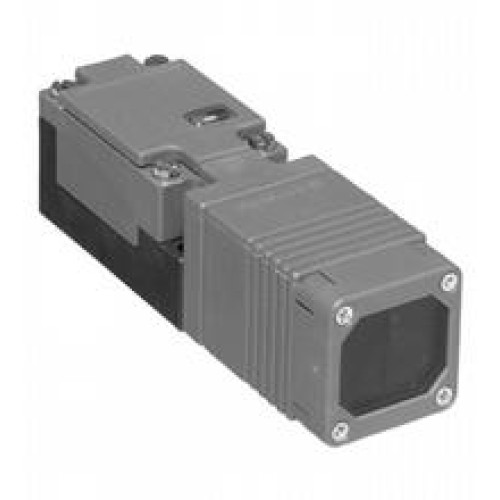

Retroreflective sensor - Effective detection range: 0 ... 2 m, Light source: LED , 660 nm, Light type: modulated visible red light

Manufacturer's No: 106529     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 2 m, Light source: LED , 660 nm, Light type: modulated visible red light, Signal output: 1 NAMUR output NC/NO programmable, Switching type:..

Availability On Request

POA
  • Detection Range: 0 to 2 meters
  • Light Source: LED, 660 nm
  • Light Type: Modulated visible red light
  • Signal Output: 1 NAMUR output NC/NO programmable
  • Switching Type: Light/dark on, programmable
  • Connection: M16 terminal compartment, core cross section ? 2.5 mm2
  • Operating Voltage: 6 to 20 V DC (Ri approx. 0 Ohm)
  • Ambient Temperature: -25 to 70°C (-13 to 158°F)


Product

Manufacturer Material ID -
106529
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
