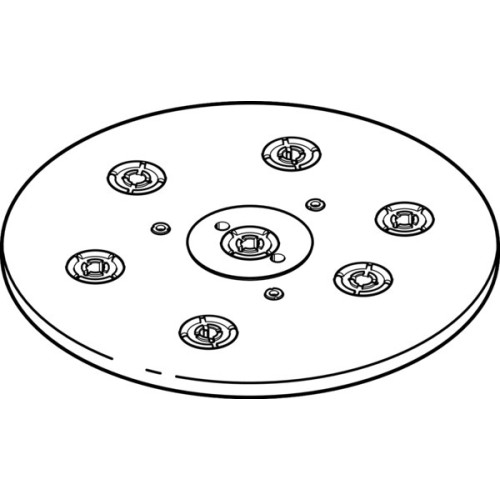

OGGB-140-G18-2 Bernoulli-gripper

Manufacturer's No: OGGB-140-G18-2     Manufacturer: Festo
OGGB-140-G18-2 Bernoulli-gripper

Availability On Request

£385.11
  • Gripper Model: OGGB-140-G18-2 Bernoulli-gripper
  • Gripper Diameter: 140 mm
  • Operating Pressure: 0 - 6 bar
  • Nominal Operating Pressure: 1 bar
  • Air Consumption at Nominal Operating Pressure: 110 L/min
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note: Lubricated operation not possible
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Corrosion Resistance Class CRC: 2 (Moderate corrosion stress)
  • Temperature Range:
    • Media: 0°C to 60°C
    • Ambient: 0°C to 60°C

Read more

  • Sound Pressure Level at Nominal Operating Pressure: 65 dBA
  • Holding Force at Nominal Operating Pressure: 7 N
  • Lateral Force at Nominal Operating Pressure: 1 N
  • Type of Mounting: Via female thread
  • Pneumatic Connection: G1/8
  • Alternative Connections: G1/8
  • RoHS-compliant materials
  • Housing Material: Wrought aluminium alloy, Anodised
  • Spacer Material: POM
  • Product Weight: 348 g


Product

Manufacturer Material ID -
OGGB-140-G18-2
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£385.11
