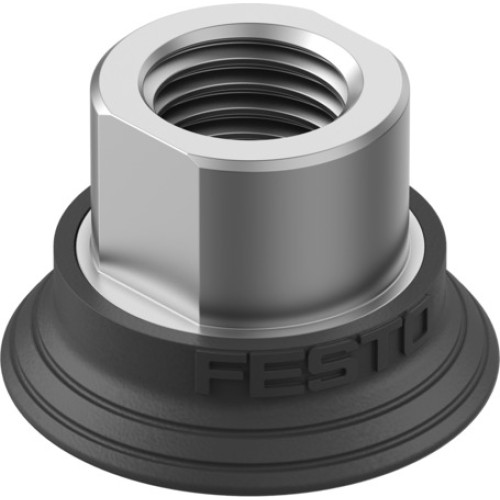

OGVM-30-S-N-G14F Suction cup complete

Manufacturer's No: OGVM-30-S-N-G14F     Manufacturer: Festo
OGVM-30-S-N-G14F Suction cup complete

Availability On Request

£17.98
  • Suction cup model: OGVM-30-S-N-G14F
  • Suction cup diameter: 30mm
  • Height compensator: 3mm
  • Min. workpiece radius: 35mm
  • Nominal size: 4mm
  • Suction cup volume: 1.8 cubic centimeters
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.06 kPa, -0.6 bar
  • Operating medium: Atmospheric air (ISO 8573-1:2010)

Read more

  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -20°C to 80°C
  • Holding force at nominal operating pressure: 36N
  • Lateral force at nominal operating pressure: 35N
  • Product weight: 8g
  • Type of mounting: Via vacuum port
  • Vacuum connection: Female thread G1/4
  • Colour: Black
  • Shore hardness: 60 +/- 5
  • Material: Suction cup - NBR, screwed plug - Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
OGVM-30-S-N-G14F
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£17.98
