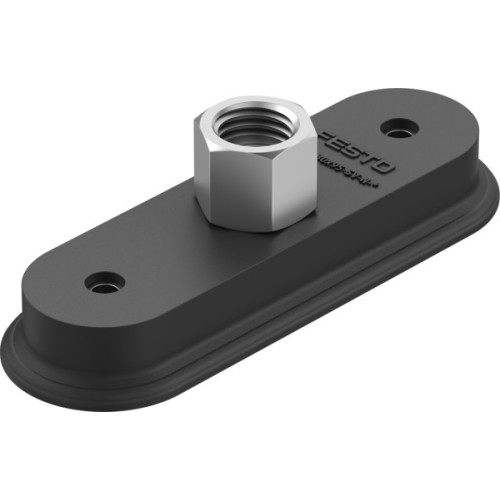

OGVM-30X95-SV-N-G14F Suction cup complete

Manufacturer's No: OGVM-30X95-SV-N-G14F     Manufacturer: Festo
OGVM-30X95-SV-N-G14F Suction cup complete

Availability On Request

£33.71
  • Suction cup complete model: OGVM-30X95-SV-N-G14F
  • Suction cup size: 30x95 mm
  • Suction cup volume: 9.6 cubic centimeters
  • Height compensator for suction cup: 3 mm
  • Min. workpiece radius: 40 mm
  • Nominal size: 6 mm
  • Operating pressure: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.06 kPa, -0.6 bar
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -20°C to 80°C
  • Holding force at nominal operating pressure: 146 N
  • Vertical lateral force at nominal operating pressure: 114 N
  • Product weight: 44 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: Female thread G1/4
  • Colour: Black
  • Shore hardness: 60 +/- 5
  • Material screwed plug: Wrought aluminium alloy
  • Material suction cup: NBR
  • RoHS-compliant materials


Product

Manufacturer Material ID -
OGVM-30X95-SV-N-G14F
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£33.71
