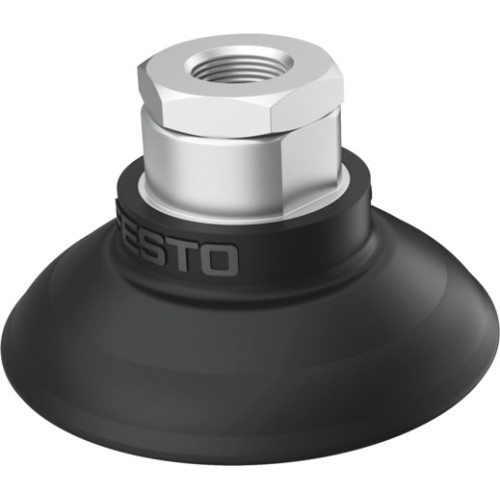

OGVM-60-G-N-G14F Suction cup complete

Manufacturer's No: OGVM-60-G-N-G14F     Manufacturer: Festo
OGVM-60-G-N-G14F Suction cup complete

Availability On Request

£37.85
  • Suction cup complete model: OGVM-60-G-N-G14F
  • Suction cup height compensator: 10.6 mm
  • Minimum workpiece radius: 27.5 mm
  • Nominal size: 6 mm
  • Suction cup diameter: 60 mm
  • Suction cup volume: 22 cubic centimeters
  • Connection position: Top
  • Suction cup shape: Round bell-shaped
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.06 kPa, -0.6 bar

Read more

  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature range: -20°C to 80°C
  • Holding force at nominal operating pressure: 143 N
  • Lateral force at nominal operating pressure: 216 N
  • Product weight: 29 g
  • Mounting type: Via vacuum port
  • Vacuum connection: Female thread G1/4
  • Color: Black
  • Shore hardness: 60 +/- 5
  • Material: Suction cup made of NBR, screwed plug made of wrought aluminum alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
OGVM-60-G-N-G14F
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£37.85
