1SCA022546R1040

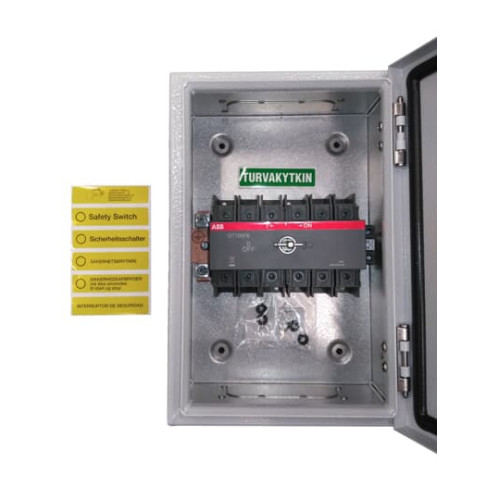

Safety switch, 6-p. 400V AC23 80A, 37kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlock

Manufacturer's No: OTL75T6B     Manufacturer: ABB
Safety switch, 6-p. 400V AC23 80A, 37kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking.

Availability On Request

£609.78
  • Safety switch for 400V AC23 applications
  • 6-pole configuration with a current rating of 80A
  • Maximum power capacity of 37kW
  • Enclosed in a steel sheet enclosure with IP65 protection
  • Features a black pistol handle for easy operation
  • Interlocked cover for safety
  • Defeatable interlocking for flexibility


Product

Manufacturer Material ID -
OTL75T6B
Net Weight -
3.50kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
BG
UNSPSC -
39121601

Technical Specification

Colour control element -
Black
Degree of protection (IP), front side -
IP65
Degree of protection (NEMA) -
Other
Depth -
135 Millimetre
Device construction -
Complete device in housing
Height -
300 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
750 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of poles -
6
Number of switches -
1
Rated operating voltage -
750 Volt
Rated operation power at AC-23, 400 V -
37 Kilowatt
Rated permanent current at AC-23, 400 V -
80 Ampere
Rated permanent current Iu -
115 Ampere
Rated short-time withstand current lcw -
2.5 kiloampere
Suitable for distribution board installation -
Switching power at 400 V -
37 Kilowatt
Type of control element -
Long turning handle
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
Width -
200 Millimetre
ABB

Availability On Request

£609.78
