OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3 Vacuum generator

Manufacturer's No: OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3     Manufacturer: Festo

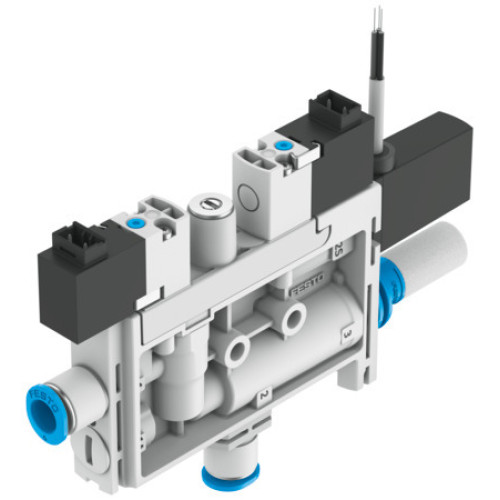

OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3 Vacuum generator

Availability On Request

£240.03
  • Vacuum generator model: OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3
  • Nominal size of Laval nozzle: 0.95 mm
  • Grid dimension: 15 mm
  • Silencer design: Open
  • Ejector characteristics: High vacuum and standard
  • Grade of filtration: 40 µm
  • Manual override: Non-detenting
  • Integrated functions: Electric ejector pulse, flow control, pressure sensor, electric on-off valve, filter, open silencer
  • Design: T-shape
  • Switching element function: N/C or N/O contact, switchable

Read more

  • Switching function: Freely programmable
  • Valve function: Closed
  • Measurement method: Piezoresistive pressure sensor with LED indicator display (2-digit)
  • Setting options: IO-Link®, Teach-in, via display and keys
  • Operating pressure: 0.2 MPa to 7 bar (29 to 101.5 psi)
  • Operating pressure for max. suction flow rate: 0.4 MPa to 4 bar (58 psi)
  • Operating pressure for max. vacuum: 0.38 MPa to 3.8 bar (55.1 psi)
  • Max. vacuum: 92%
  • Nominal operating pressure: 0.4 MPa to 4 bar (58 psi)
  • Max. suction flow rate against atmosphere: 21 L/min
  • Air supply time at nominal operating pressure with ejector pulse: 1 s
  • Operational voltage range DC: 21.6 V to 26.4 V
  • Duty cycle: 100%
  • Switching output: PNP/NPN, switchable
  • Approval: c UL us listed (OL), KC mark: KC-EMV, CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Media temperature: 0°C to 50°C
  • Sound pressure level at nominal operating pressure: 68 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Product weight: 92 g
  • Operating voltage range, DC sensor: 18 V to 30 V
  • Pressure measuring range: -0.1 MPa to 0 MPa (-1 bar to 0 bar, -14.5 psi to 0 psi)
  • Electrical connections: Ejector pulse, vacuum generation, sensor
  • Cable characteristics: Suitable for energy chains, 2.5 m length, 2.9 mm diameter
  • Nominal cross-section conductor: 0.14 mm²
  • Type of mounting: With through-hole
  • Pneumatic connections: Port 1 for tubing O.D. 6 mm, port 3 for open silencer
  • Vacuum connection: For tubing O.D. 6 mm
  • Cable sheath color: Grey
  • Materials: POM, NBR, PA-reinforced, PVC, steel, wrought aluminum alloy


Product

Manufacturer Material ID -
OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£240.03
