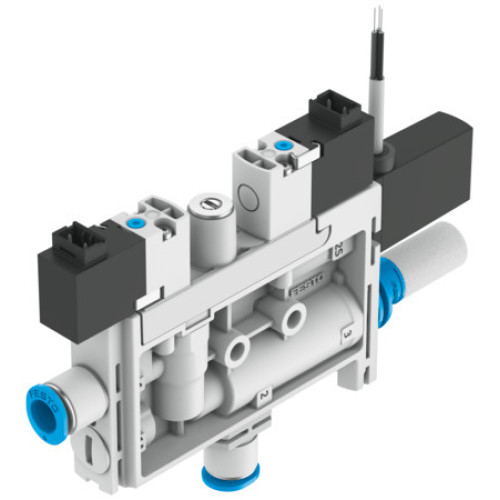

OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3 Vacuum generator

Manufacturer's No: OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3     Manufacturer: Festo
OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3 Vacuum generator

Availability On Request

£226.10
  • Vacuum generator model: OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3
  • Nominal size of Laval nozzle: 0.45 mm
  • Grid dimension: 10 mm
  • Silencer design: Open
  • Ejector characteristics: High vacuum and standard
  • Grade of filtration: 40 µm
  • Manual override: Non-detenting
  • Integrated functions: Electric ejector pulse, flow control, pressure sensor, electric on-off valve, filter, open silencer
  • Design: T-shape
  • Switching element function: N/C or N/O contact, switchable

Read more

  • Switching function: Freely programmable
  • Valve function: Closed
  • Measurement method: Piezoresistive pressure sensor with LED display
  • Display type: 2-digit
  • Setting options: IO-Link®, Teach-in, via display and keys
  • Operating pressure: 0.2 MPa to 7 bar (29 to 101.5 psi)
  • Operating pressure for max. suction flow rate: 0.3 MPa to 3 bar (43.5 psi)
  • Operating pressure for max. vacuum: 0.42 MPa to 4.2 bar (60.9 psi)
  • Max. vacuum: 89%
  • Nominal operating pressure: 0.4 MPa to 4 bar (58 psi)
  • Max. suction flow rate against atmosphere: 4 L/min
  • Air supply time at nominal operating pressure with ejector pulse: 2 s
  • Operational voltage range DC: 21.6 V to 26.4 V
  • Duty cycle: 100%
  • Switching output: PNP/NPN, switchable
  • Approval: c UL us listed (OL), KC mark: KC-EMV, CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Media temperature: 0°C to 50°C
  • Sound pressure level at nominal operating pressure: 64 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Product weight: 74 g
  • Electrical connection input/output details
  • Cable characteristics: Suitable for energy chains, diameter: 2.9 mm, length: 2.5 m
  • Material details: POM, NBR, PA-reinforced, PVC, steel, wrought aluminium alloy


Product

Manufacturer Material ID -
OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
