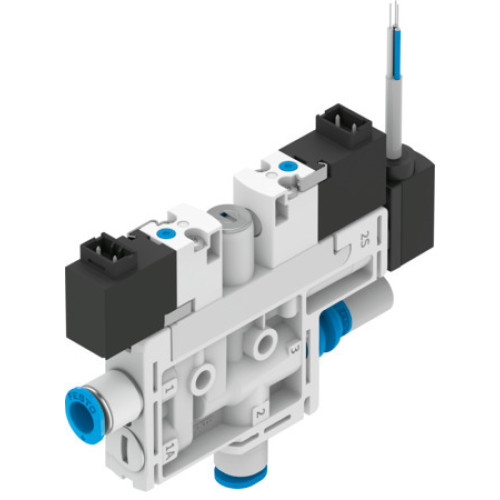

OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3 Vacuum generator

Manufacturer's No: OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3     Manufacturer: Festo
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3 Vacuum generator

Availability On Request

£226.10
  • Vacuum generator OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3
  • Nominal size of Laval nozzle: 0.45 mm
  • Grid dimension: 10 mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum
  • Grade of filtration: 40 µm
  • Manual override: Non-detenting
  • Integrated functions: Electric ejector pulse, flow control, pressure sensor, electric on-off valve, filter, open silencer
  • Design: T-shape
  • Switching element function: N/C or N/O contact, switchable

Read more

  • Switching function: Freely programmable
  • Valve function: Closed
  • Measurement method: Piezoresistive pressure sensor with LED display
  • Display type: 2-digit
  • Setting options: IO-Link®, Teach-in, via display and keys
  • Operating pressure: 0.2 MPa, 0.7 MPa, 2 bar, 7 bar, 29 psi, 101.5 psi
  • Operating pressure for max. suction flow rate: 0.3 MPa, 3 bar, 43.5 psi
  • Operating pressure for max. vacuum: 0.42 MPa, 4.2 bar, 60.9 psi
  • Max. vacuum: 89%
  • Nominal operating pressure: 0.4 MPa, 4 bar, 58 psi
  • Max. suction flow rate against atmosphere: 4 L/min
  • Air supply time at nominal operating pressure with ejector pulse: 2 s
  • Operational voltage range DC: 21.6 V - 26.4 V
  • Duty cycle: 100%
  • Switching output: PNP/NPN, switchable
  • Approval: c UL us listed (OL), KC mark: KC-EMV, CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Media temperature: 0°C - 50°C
  • Sound pressure level at nominal operating pressure: 64 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C - 50°C
  • Product weight: 74 g
  • Operating voltage range, DC sensor: 18 V - 30 V
  • Pressure measuring range: -0.1 MPa - 0 MPa, -1 bar - 0 bar, -14.5 psi - 0 psi
  • Electrical connection input: Ejector pulse, Vacuum generation
  • Electrical connection output: Sensor
  • Cable characteristics: Suitable for energy chains, grey sheath color
  • Cable diameter: 2.9 mm, tolerance: ± 0.1 mm, length: 2.5 m
  • Nominal cross-section conductor: 0.14 mm²
  • Type of mounting: With through-hole
  • Pneumatic connection: Port 1 for tubing outer diameter of 4 mm, port 3 open silencer
  • Vacuum connection: For tubing outside diameter of 4 mm
  • Material: POM, NBR, PA-reinforced, PVC, steel, wrought aluminum alloy


Product

Manufacturer Material ID -
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-H3
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£226.10
Sign in or Register for customer prices.
