OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-H3 Vacuum generator

Manufacturer's No: OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-H3     Manufacturer: Festo

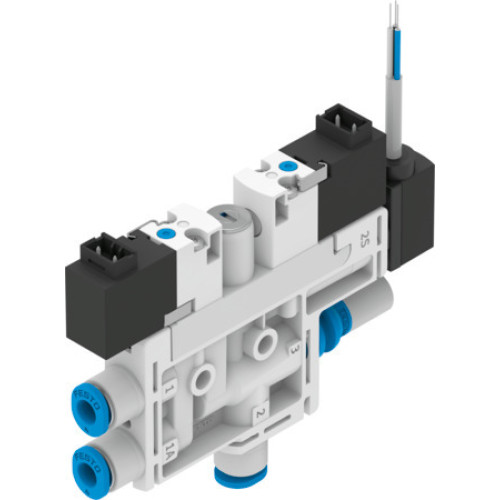

OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-H3 Vacuum generator

Availability On Request

£184.33
  • Vacuum generator model: OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-H3
  • Laval nozzle size: 0.45 mm
  • Grid dimension: 10 mm
  • Silencer design: Open
  • Ejector characteristics: High vacuum, Standard
  • Grade of filtration: 40 µm
  • Manual override: Non-detenting
  • Integrated functions: Electric ejector pulse, Flow control, Pressure transmitter, Electric on-off valve, Filter
  • Design: T-shape
  • Valve function: Closed

Read more

  • Measurement method: Piezoresistive pressure sensor
  • Operating pressure for max. suction flow rate: 0.3 MPa (3 bar, 43.5 psi)
  • Operating pressure range: 0.2 MPa - 7 bar (29 - 101.5 psi)
  • Operating pressure for max. vacuum: 0.42 MPa (4.2 bar, 60.9 psi)
  • Max. vacuum: 89%
  • Nominal operating pressure: 0.4 MPa (4 bar, 58 psi)
  • Max. suction flow rate against atmosphere: 4 L/min
  • Air supply time at nominal operating pressure with ejector pulse: 2 s
  • Analogue output: 0 - 10 V
  • Operational voltage range DC: 21.6 V - 26.4 V
  • Duty cycle: 100%
  • Coil data: 24 V DC, 1.0 W
  • Approvals: c UL us listed (OL), KC mark: KC-EMV, CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • Media temperature range: 0°C - 50°C
  • Sound pressure level at nominal operating pressure: 64 dBA
  • Degree of protection: IP40
  • Ambient temperature range: 0°C - 50°C
  • Product weight: 71 g
  • Operating voltage range, DC sensor: 18 V - 30 V
  • Pressure measuring range: -0.1 MPa - 0 MPa (-1 bar - 0 bar, -14.5 psi - 0 psi)
  • Electrical connections: Ejector pulse, Vacuum generation
  • Cable characteristics: Suitable for energy chains, 2.9 mm diameter, 2.5 m length
  • Nominal cross-section conductor: 0.14 mm²
  • Pneumatic connections: Port 1 for tubing OD 4 mm, Port 3 for open silencer, Vacuum connection for tubing OD 4 mm
  • Cable sheath color: Grey
  • Materials: POM, NBR, PA-reinforced, PVC, Steel, Wrought aluminum alloy
