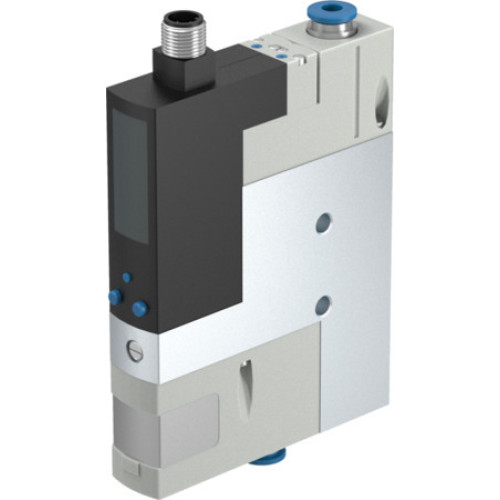

OVEM-05-H-B-QO-CE-N-LK Vacuum generator

Manufacturer's No: OVEM-05-H-B-QO-CE-N-LK     Manufacturer: Festo
OVEM-05-H-B-QO-CE-N-LK Vacuum generator

Availability Back Order

£699.21
  • Vacuum generator model: OVEM-05-H-B-QO-CE-N-LK
  • Nominal size Laval nozzle: 0.45 mm
  • Grid dimension: 20 mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum and Standard
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Air saving function, Check valve, Open silencer, Vacuum switch
  • Design: Modular
  • Short circuit current rating: Yes
  • Measured variable: Relative pressure
  • Display type: 4-place alphanumeric, Back-lit LCD

Read more

  • Indicating range: -0.999 bar, 0 bar
  • Operating pressure: 2 bar to 8 bar, max. vacuum 5.1 bar, nominal operating pressure 6 bar
  • Max. suction flow rate against atmosphere: 6 L/min
  • Operational voltage range DC: 20.4 V to 27.6 V
  • Duty cycle: 100%
  • Insulation voltage: 50 V
  • Max. output current: 100 mA, Off-state current: 0.1 mA
  • Switching output: 2xPNP
  • Voltage drop: 1.8 V
  • Immunity to surge: 0.8 kV
  • Overload protection: Available
  • Degree of protection: IP65, Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Product weight: 325 g
  • Pressure measuring range: -1 bar to 0 bar
  • Accuracy: ±3% FS, Reproducibility of switching values: 0.6%
  • IO-Link Protocol version: Device V 1.1, Profile: Smart sensor profile
  • Electrical connection: 5-pin, M12x1 plugs
  • Pneumatic connections: Port 1 QS-6, Port 3 QS-8, Vacuum connection QS-6
  • Materials: RoHS-compliant, NBR seals, POM receiver nozzle, Fabric, PA, and sintered steel filters, Die-cast aluminum and PA-reinforced housing, Steel adjusting screw, Wrought aluminum alloy and PU foam silencer, Nickel-plated brass connector housing, Gold-plated brass electrical contact, Steel pins, TPE-U keypad, Nickel-plated brass fitting

Accessories

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
OVEM-05-H-B-QO-CE-N-LK
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability Back Order

£699.21
