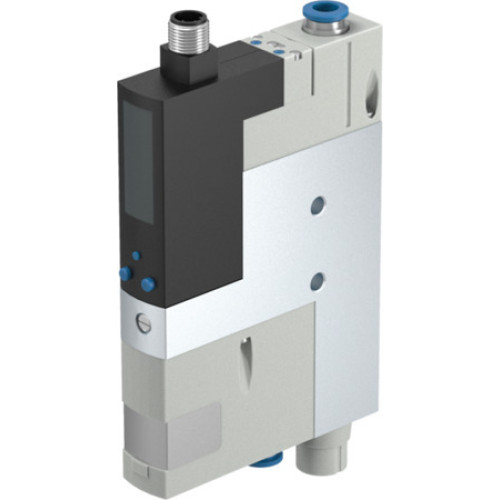

OVEM-10-H-B-QO-CE-N-LK Vacuum generator

Manufacturer's No: OVEM-10-H-B-QO-CE-N-LK     Manufacturer: Festo
OVEM-10-H-B-QO-CE-N-LK Vacuum generator

Availability Back Order

£718.70
  • Vacuum generator model: OVEM-10-H-B-QO-CE-N-LK
  • Nominal size of Laval nozzle: 0.95 mm
  • Grid dimension: 20 mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum and Standard
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Air saving function, Check valve, Vacuum switch
  • Design: Modular with open silencer
  • Measured variable: Relative pressure
  • Display type: Back-lit LCD with 4-place alphanumeric display
  • Indicating range: -0.999 to 0 BAR in bar units

Read more

  • Operating pressure range: 2 to 8 BAR, max. vacuum at 3.5 BAR
  • Max. suction flow rate against atmosphere: 19.5 L/min
  • Operational voltage range DC: 20.4 to 27.6 V
  • Duty cycle: 100%
  • Insulation voltage: 50 V
  • Max. output current: 100 mA
  • Switching output: 2xPNP
  • Sound pressure level at nominal operating pressure: 73 dBA
  • Degree of protection: IP65, Protection class: III
  • Ambient temperature range: 0 to 50°C
  • Product weight: 330 g
  • Pressure measuring range: -1 to 0 BAR
  • Accuracy: ±3% FS, Reproducibility of switching values: 0.6%
  • IO-Link Protocol version: Device V 1.1, Profile: Smart sensor profile
  • Electrical connection: 5-pin M12x1 plugs
  • Pneumatic connections: QS-8 for port 1, port 3, and vacuum connection
  • Materials: RoHS-compliant with various materials used for different components

Accessories

PUN-H-8X1.25-TBL 6MM PLASTIC TUBING

Product Code - 8048691
Price £1.61
Back Order

PUN-H-8X1 25-BL PLATIC TUBING

Product Code - 197385
Price £1.61
Back Order


Product

Manufacturer Material ID -
OVEM-10-H-B-QO-CE-N-LK
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability Back Order

£718.70
