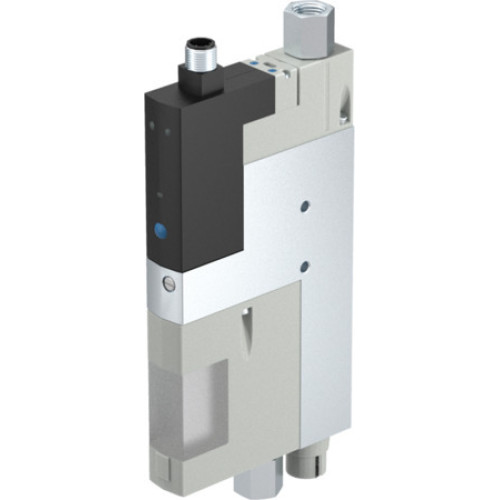

OVEM-14-H-B-GO-CE-N-1P Vacuum generator

Manufacturer's No: OVEM-14-H-B-GO-CE-N-1P     Manufacturer: Festo
OVEM-14-H-B-GO-CE-N-1P Vacuum generator

Availability On Request

£590.57
  • Model: OVEM-14-H-B-GO-CE-N-1P
  • Supply/vacuum port: G threads
  • Exhaust port: Open silencer
  • Nominal size Laval nozzle: 1.4 mm
  • Grid dimension: 20 mm
  • Ejector characteristic: High vacuum, Standard
  • Grade of filtration: 40 MIM
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Check valve, Open silencer, Vacuum switch
  • Design: Modular
  • Short circuit current rating: Yes

Read more

  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Switching element function: N/O contact
  • Switching function: Threshold value comparator, Threshold value with fixed hysteresis
  • Valve function: Closed
  • Operating pressure: 2 BAR, 8 BAR, max. vacuum 93%
  • Nominal operating pressure: 6 BAR
  • Max. suction flow rate against atmosphere: 50.5 L2
  • Air supply time at nominal operating pressure: 0.2 s
  • Operational voltage range DC: 20.4 V - 27.6 V
  • Duty cycle: 100%
  • Insulation voltage: 50 V
  • Max. output current: 100 mA
  • Degree of protection: IP65
  • Protection class: III
  • Ambient temperature: 0°C - 50°C
  • Product weight: 375 g
  • Material: Die-cast aluminium, PA-reinforced, Steel, Wrought aluminium alloy, PU foam, Nickel-plated brass, Gold-plated brass, NBR, POM, Fabric, PA, Sintered steel


Product

Manufacturer Material ID -
OVEM-14-H-B-GO-CE-N-1P
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£590.57
