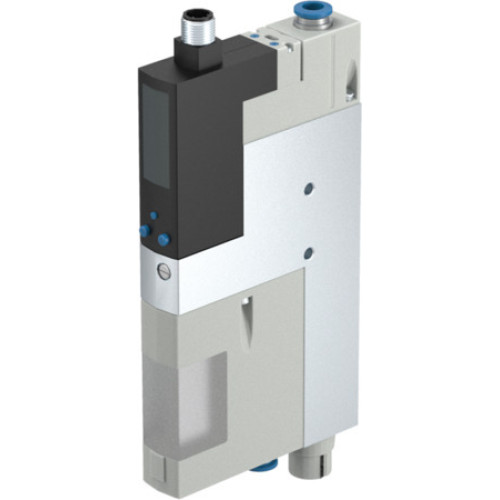

OVEM-14-H-B-QO-CE-N-LK Vacuum generator

Manufacturer's No: OVEM-14-H-B-QO-CE-N-LK     Manufacturer: Festo
OVEM-14-H-B-QO-CE-N-LK Vacuum generator

Availability On Request

£825.75
  • Vacuum generator model: OVEM-14-H-B-QO-CE-N-LK
  • Nominal size of Laval nozzle: 1.4 mm
  • Grid dimension: 20 mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum and Standard
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Air saving function, Check valve, Open silencer, Vacuum switch
  • Design: Modular
  • Short circuit current rating: Yes
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive

Read more

  • Display type: Back-lit LCD with 4-place alphanumeric
  • Indicating range: -0.999 bar to 0 bar
  • Operating pressure range: 2 bar to 8 bar
  • Max. vacuum: 93%
  • Max. suction flow rate against atmosphere: 50.5 L/min
  • Operational voltage range DC: 20.4 V to 27.6 V
  • Duty cycle: 100%
  • Degree of protection: IP65
  • Ambient temperature range: 0°C to 50°C
  • Product weight: 380 g
  • Material: Die-cast aluminium housing, PA-reinforced, NBR seals, POM receiver nozzle, Fabric, PA, and sintered steel filters, Wrought aluminium alloy and PU foam silencer, Steel screws, PA screen, Nickel-plated brass connector housing, Gold-plated brass electrical contact, Steel pins, Wrought aluminium alloy transmitter nozzle, TPE-U keypad, Nickel-plated brass fitting
  • IO-Link protocol version: Device V 1.1
  • IO-Link communication mode: COM2 (38.4 kBaud)
  • IO-Link process data content: Pressure measurement value, Pressure monitoring, Ejector pulse IN/OUT, Vacuum ON/OFF


Product

Manufacturer Material ID -
OVEM-14-H-B-QO-CE-N-LK
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£825.75
