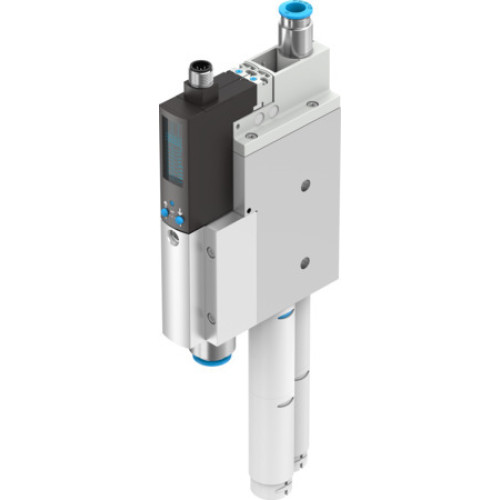

OVEM-20-H-C-QO-CE-N-LK Vacuum generator

Manufacturer's No: OVEM-20-H-C-QO-CE-N-LK     Manufacturer: Festo
OVEM-20-H-C-QO-CE-N-LK Vacuum generator

Availability On Request

£897.85
  • Nominal size Laval nozzle: 2 mm
  • Grid dimension: 36 mm
  • Ejector characteristic: High vacuum
  • Grade of filtration: 40 µm
  • Integrated functions: Electric ejector pulse valve, flow control, electric on-off valve, filter, air saving function, check valve, open silencer, vacuum switch
  • Design: Modular
  • Short circuit current rating: Yes
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Display type: Back-lit LCD, 4-place alphanumeric

Read more

  • Indicating range: -0.999 bar to 0 bar
  • Setting range hysteresis: -0.9 bar to 0 bar
  • Operating pressure: 2 bar to 8 bar
  • Max. vacuum: 93%
  • Max. suction flow rate against atmosphere: 98 L/min
  • Operational voltage range DC: 20.4 V to 27.6 V
  • Duty cycle: 100%
  • Insulation voltage: 50 V
  • No-load supply current: 70 mA
  • Max. output current: 100 mA
  • Switching output: 2x PNP
  • Sound pressure level at nominal operating pressure: 62 dBA
  • Degree of protection: IP65
  • Ambient temperature: 0°C to 50°C
  • Product weight: 825 g
  • Material seals: HNBR, NBR
  • Material housing: Wrought aluminium alloy, PA-reinforced
  • Material receiver nozzle: POM
  • Material filter: Fabric, PA, sintered steel
  • Material silencer: Wrought aluminium alloy, POM, PU foam
  • Material screws: Steel
  • Material connector housing: Nickel-plated brass
  • Material electrical contact: Gold-plated brass


Product

Manufacturer Material ID -
OVEM-20-H-C-QO-CE-N-LK
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£897.85
