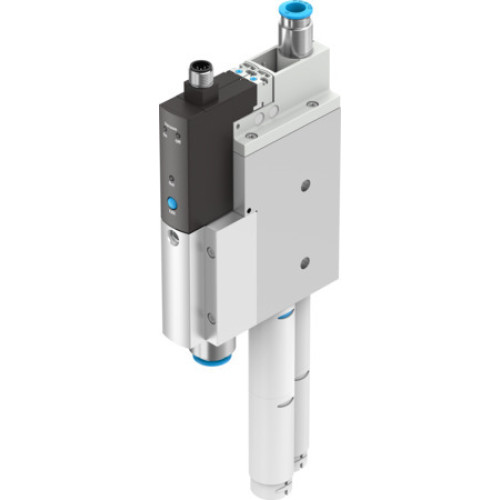

OVEM-30-H-C-QO-CE-N-1P Vacuum generator

Manufacturer's No: OVEM-30-H-C-QO-CE-N-1P     Manufacturer: Festo
OVEM-30-H-C-QO-CE-N-1P Vacuum generator

Availability On Request

£683.36
  • Vacuum generator model: OVEM-30-H-C-QO-CE-N-1P
  • Nominal size of Laval nozzle: 3mm
  • Grid dimension: 36mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum
  • Grade of filtration: 40?m
  • Integrated functions: Electric ejector pulse valve, flow control, electric on-off valve, filter, check valve, open silencer, vacuum switch
  • Design: Modular
  • Short circuit current rating: Yes
  • Measured variable: Relative pressure

Read more

  • Measuring principle: Piezoresistive
  • Switching element function: N/O contact
  • Switching function: Threshold value comparator with fixed hysteresis
  • Valve function: Closed
  • Operating pressure range: 2-8 bar
  • Max. vacuum: 93%
  • Nominal operating pressure: 6 bar
  • Max. suction flow rate against atmosphere: 181 L/min
  • Air supply time at nominal operating pressure: 0.2s
  • Operational voltage range DC: 20.4-27.6V
  • Duty cycle: 100%
  • Insulation voltage: 50V
  • Max. output current: 100mA
  • Degree of protection: IP65
  • Ambient temperature range: 0-50°C
  • Product weight: 815g
  • Material composition: Various materials including wrought aluminium alloy, steel, nickel-plated brass, and PA-reinforced components


Product

Manufacturer Material ID -
OVEM-30-H-C-QO-CE-N-1P
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
84141089
Country of Origin -
HU
UNSPSC -
30102206
