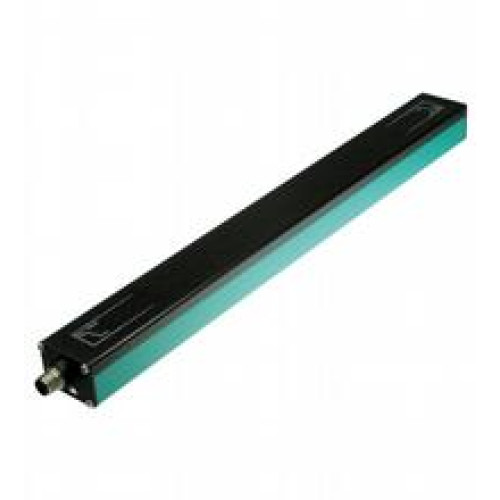

PMI210-F110-IU-V1

Analog output 0 V ... 10 V/4 mA ... 20 mA, Measuring range 0 ... 210 mm, Switching element function: analog, current or voltage ou

Manufacturer's No: 191142     Manufacturer: Pepperl+Fuchs
Analog output 0 V ... 10 V/4 mA ... 20 mA, Measuring range 0 ... 210 mm, Switching element function: analog, current or voltage output, Output polarity: DC, Operating voltage: 18 ... 30 V DC, Type of

Availability On Request

£378.79
  • Measuring range: 0 to 210 mm
  • Output type:
    • 1 current output: 4 to 20 mA
    • 1 voltage output: 0 to 10 V
  • Operating voltage: 18 to 30 V DC
  • Output polarity: DC
  • Type of voltage: DC
  • UL approval: cULus Listed, General Purpose, Class 2 Power Source
  • CCC approval: Not required for products rated ?36 V
  • Connection type: 4-pin, M12 x 1 connector
  • Degree of protection: IP65


Product

Manufacturer Material ID -
191142
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
90318020
Country of Origin -
DE
UNSPSC -
41112400
Pepperl+Fuchs

Availability On Request

£378.79
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
