2A000006

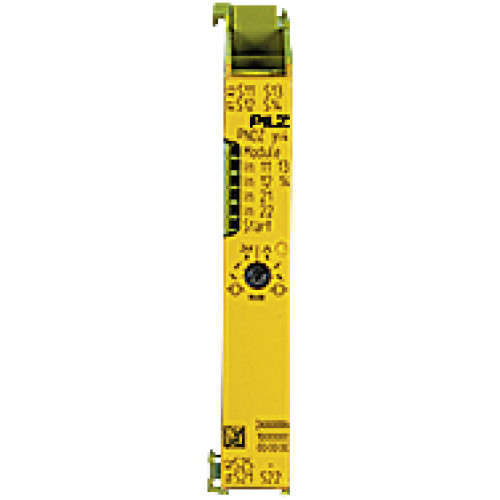

Expansion module of the modular safety relay myPNOZ, inputs: 6 for monitoring of 2-hand monitoring Type IIIC to EN 574

Manufacturer's No: PNOZ yi4 2DI T3C     Manufacturer: Pilz
Expansion module of the modular safety relay myPNOZ, inputs: 6 for monitoring of 2-hand monitoring Type IIIC to EN 574

Availability On Request

£194.46
  • Expansion module for myPNOZ modular safety relay
  • Inputs: 6 for 2-hand monitoring Type IIIC to EN 574 and another safety function
  • Supports 1/2-channel wiring with/without detection of shorts across contacts
  • AND-linked
  • Width: 12.5mm

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PNOZ yi4 2DI T3C
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
UNSPSC -
39121535

Technical Specification

Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Thumbnail of product picture -
Medien_800/Pictures_800/2A000006_800.jpg
Depth -
121 Millimetre
Height -
98 Millimetre
Type of electric connection -
Spring clamp connection
Width -
12.5 Millimetre
Pilz

Availability On Request

£194.46
