6EP13347CA10

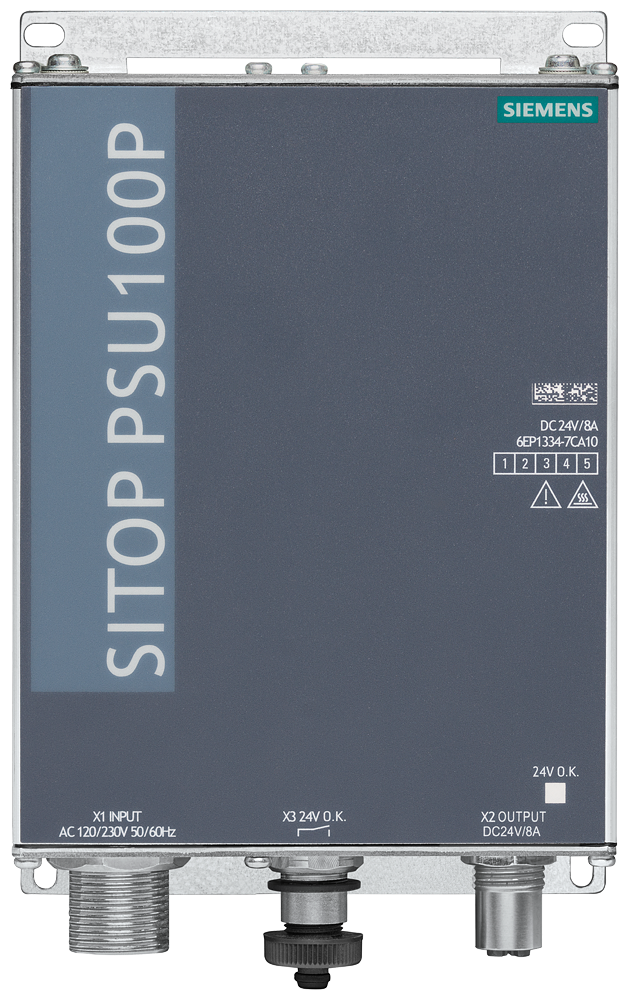

Power supply SITOP PSU100P, single-phase 24 V DC/8 A in IP67 for wall mounting

Manufacturer's No: 6EP1334-7CA10     Manufacturer: Siemens

Availability Back Order

£445.00
  • Stabilized power supply
  • Input: 120/230 V AC
  • Output: 24 V DC, 8 A
  • Outgoing connector: M12 L-coded


Product

Manufacturer Material ID -
6EP1334-7CA10
Net Weight -
1.45kg

Additional Product Information

Commodity Code -
85044083
Country of Origin -
HU
Export Control Regulations -
N / N
UNSPSC -
32121704

Technical Specification

1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP67
Depth -
60.5 Millimetre
Direct mounting possible -
Height -
181 Millimetre
Max. output current 1 -
8 Ampere
Modular version -
Nominal value output current 1 -
8 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
206 Watt
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Recess width -
120 Millimetre
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Wall mounting possible -
Width -
120 Millimetre

Availability Back Order

£445.00
