6EP13232BA00

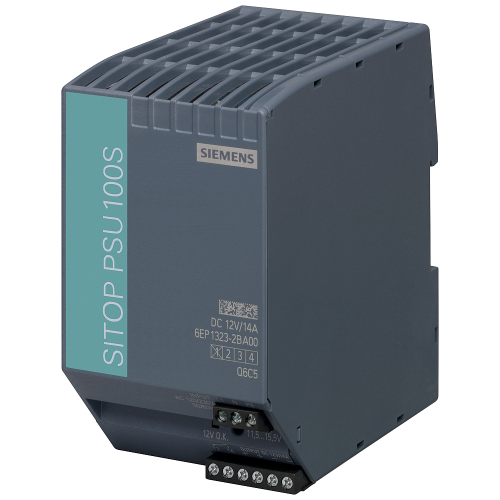

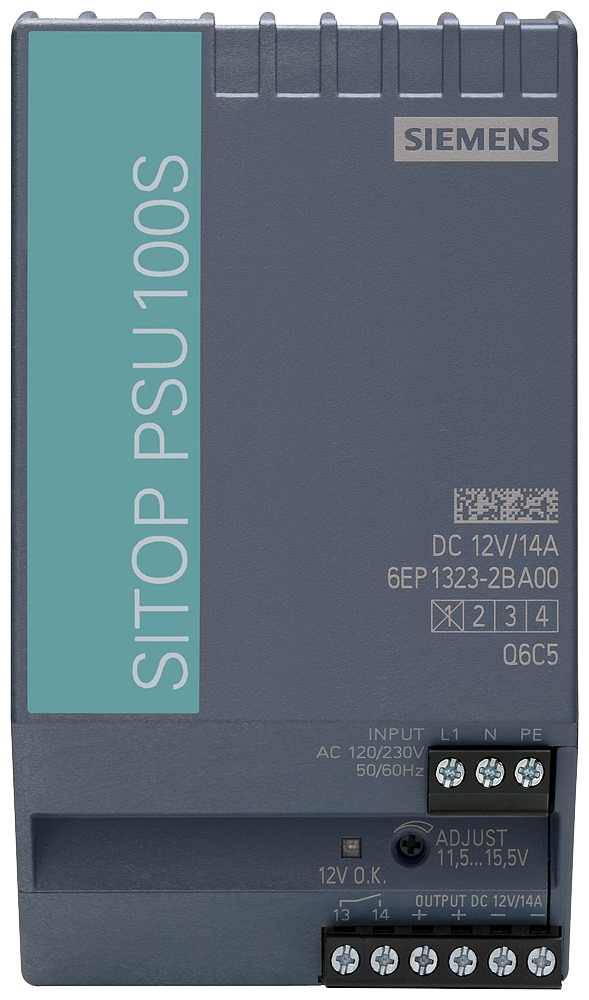

Sitop Smart, input 120-230V 1ph - output 12V/14.0 amp DC

Manufacturer's No: 6EP1323-2BA00     Manufacturer: Siemens

Availability Back Order

£251.00
  • Stabilized power supply
  • Input: 120/230 V AC
  • Output: 12 V DC, 14 A


Product

Manufacturer Material ID -
6EP1323-2BA00
Net Weight -
0.76kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
32121704

Technical Specification

-
Siemens
Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
70 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
12 Volt
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
125 Millimetre
Max. output current 1 -
14 Ampere
Modular version -
Nominal value output current 1 -
14 Ampere
Nominal value output voltage 1 -
12 Volt
Output voltage stabilized -
Power output -
168 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Recess height -
225 Millimetre
Recess width -
70 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
70 Millimetre

Availability Back Order

£251.00
