50150255

Application: Detection of stretch-wrapped objects; Operating range limit: 0.03 ... 5 m; Light source: LED, Red; Supply voltage: 10

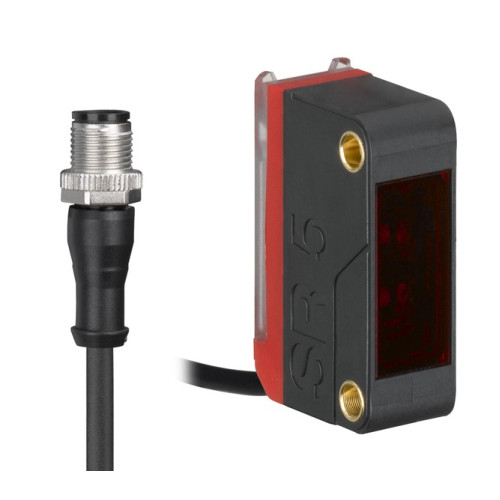

Manufacturer's No: PRK5B.D/4X-200-M12     Manufacturer: Leuze
Application: Detection of stretch-wrapped objects; Operating range limit: 0.03 ... 5 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output

Availability Back Order

POA
  • Application: Detection of stretch-wrapped objects
  • Operating Range: 0.03 m to 5 m
  • Light Source: Red LED
  • Supply Voltage: 10 V to 30 V DC
  • Digital Switching Outputs: 1 PNP Transistor
  • Switching Frequency: 500 Hz
  • Connection: 200 mm M12 Plastic Cable with Connector
  • Housing Design: Cubic
  • Dimensions: 11 mm x 32.4 mm x 20 mm
  • Housing Material: Plastic

Read more

  • Operating Temperature: -40°C to 60°C
  • Degree of Protection: IP 67

Accessories



Product

Manufacturer Material ID -
PRK5B.D/4X-200-M12
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
MY
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
32.4 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
20 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
4000 Millimetre
Maximum output current -
50 Milliampere
Min. reflector distance -
40 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
4000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Cable with connector
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
11 Millimetre
