6833902

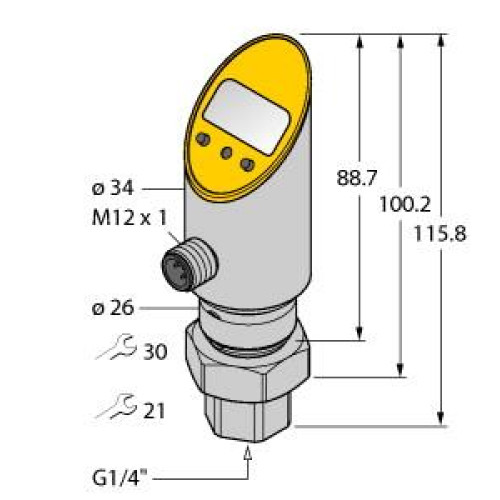

Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Swit

Manufacturer's No: PS003A-501-LI2UPN8X-H1141/3GD     Manufacturer: Turck Banner
Pressure Transmitter (Rotatable), With Analog Output and PNP/NPN Transistor Swit

Availability On Request

£624.95
  • Pressure Transmitter with rotatable housing
  • Analog output and PNP/NPN transistor switching output
  • Output 2 reprogrammable as switching output
  • Operating voltage: 18-30 VDC
  • Rotatable housing after plugging process connection
  • Reading of adjusted values without tool
  • Recessed pushbutton and keylock for secure programming
  • Permanent indication of pressure in bar, psi, kPa, MPa
  • Peak pressure memory feature
  • Pressure range: 0-2.5 bar abs

Read more

  • ATEX category II 3 G, Ex zone 2
  • ATEX category II 3 D, Ex zone 22


Product

Manufacturer Material ID -
PS003A-501-LI2UPN8X-H1141/3GD
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Adjustable current range -
4 Ampere
Bursting pressure -
7 Pressure
Degree of protection (IP rating) -
IP67
End setting -
2500 Hecto Pascal
End value measuring range pressure -
250000 Pascal
Engaging pressure -
0 Pressure
Initial setting -
0 Hecto Pascal
Initial value measuring range pressure -
0 Pascal
Max. test pressure -
7 Pressure
Medium temperature -
-40 Degrees celsius
Rated voltage Ue at DC -
18 Volt
Switch off pressure -
2.5 Pressure
Type of electric connection -
Other
Turck Banner

Availability On Request

£624.95
