3074139

WORLD-BEAM Q12 Series: Receiver, Range: 2 m, Input 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pi

Manufacturer's No: Q12AB6RQ5     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Receiver, Range: 2 m, Input 10-30 V dc, Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£97.99
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Miniature sensor with a compact design
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 2000 mm
  • Cable Length: 0.15 m, PVC material
  • Cable with M12 × 1 male end, 4-pin connector
  • Protection Class: IP67
  • LED for all-round visibility
  • Indication of insufficient excess gain
  • Switching Output: Bipolar, light operation


Product

Manufacturer Material ID -
Q12AB6RQ5
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

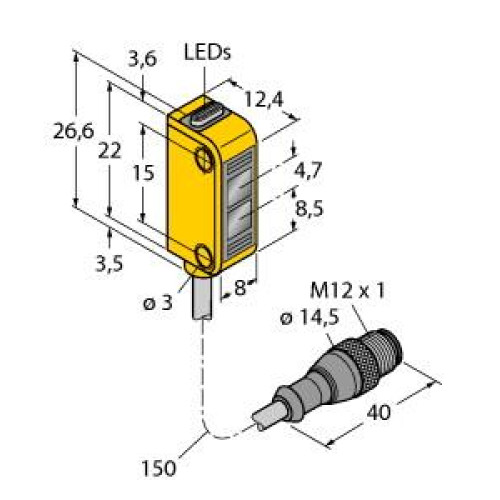

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Switching frequency -
450 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability On Request

£97.99
