3806618

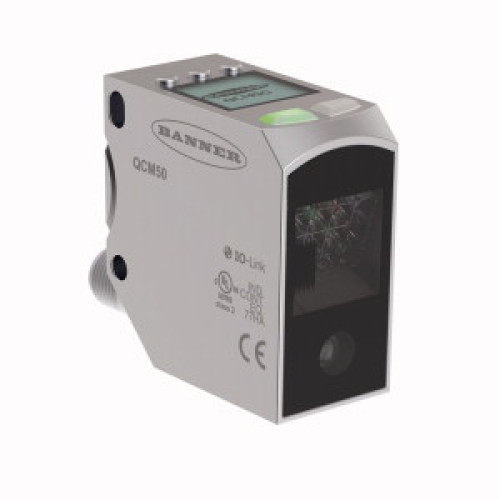

QCM50 Series: Color Sensor, Range: 18-60, Input: 10-30 V dc, Outputs: 1 Discrete PNP/NPN, IO-Link, 4-pin M12 Integral QD, Small Sp

Manufacturer's No: QCM50-K1D40-Q8-4     Manufacturer: Turck Banner
QCM50 Series: Color Sensor, Range: 18-60, Input: 10-30 V dc, Outputs: 1 Discrete PNP/NPN, IO-Link, 4-pin M12 Integral QD, Small Spot

Availability On Request

£855.64
  • Type: Photoelectric Color Sensor with Switching Output
  • Operating Voltage: 18-30 VDC
  • Max. Range: 60 mm
  • Protection Classes: IP67/IP69
  • Connector: M12 x 1 male, 4-pin
  • Range: 18-60 mm with narrow light spot
  • Output: One PNP/NPN switching output and IO-Link
  • Features: Stores and compares up to one color


Product

Manufacturer Material ID -
QCM50-K1D40-Q8-4
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
50.5 Millimetre
Housing material -
Other
Length of sensor -
50 Millimetre
Material of optical surface -
Plastic
No load current -
60 Milliampere
Type of electric connection -
Connector M12
Type of light -
White light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£855.64
