3073096

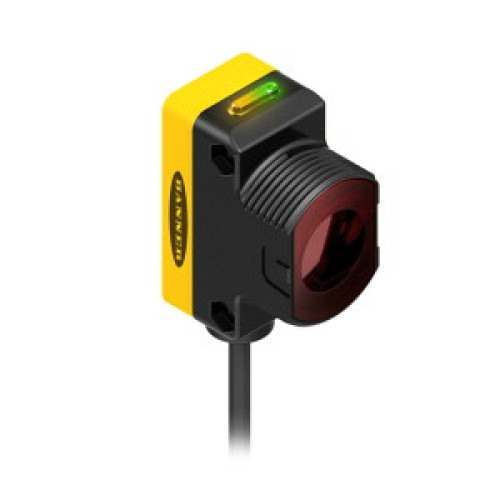

WORLD-BEAM QS30: Diffuse, Range: 1.0 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 PUR Pigtail QD

Manufacturer's No: QS30DQPMA     Manufacturer: Turck Banner
WORLD-BEAM QS30: Diffuse, Range: 1.0 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 PUR Pigtail QD

Availability On Request

£128.85
  • Type: Photoelectric Sensor, Diffuse Mode
  • Operating Voltage: 10-30 VDC
  • Max. Range: 1000 mm
  • Cable Length: 0.15 m
  • Cable Type: 5-pin M12 × 1, PUR, 150 mm
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Sensitivity Adjustment: Via potentiometer
  • Switching Output: Bipolar
  • Operation Mode: Light or dark


Product

Manufacturer Material ID -
QS30DQPMA
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
32151705

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

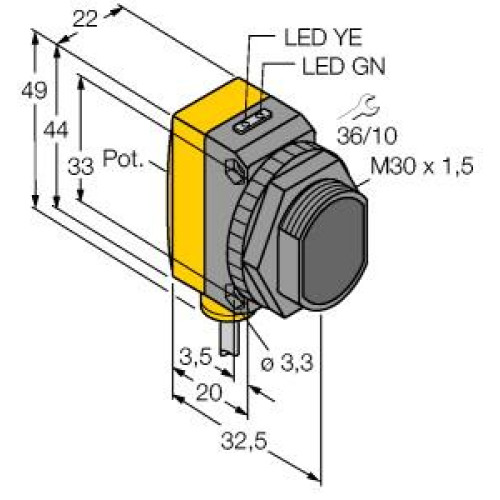

Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
1000 Millimetre
Reaction time -
2 Millisecond
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
940 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£128.85
