100010358 {T}

Incremental Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution

Manufacturer's No: REI-10SA1S-4B512-H1181     Manufacturer: Turck Banner
Incremental Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution

Availability On Request

£388.80
  • Incremental Encoder from the Industrial Line
  • Operating voltage: 5-30 VDC
  • Resolution: 512 pulses per revolution (ppr)

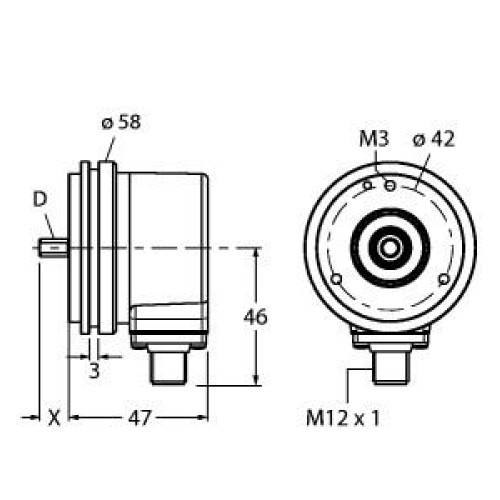

  • Synchro flange with a diameter of 58 mm
  • Solid stainless steel shaft with a diameter of 3/8" x 5/8"
  • Optical measuring principle
  • Protection class: IP67 on housing and shaft side
  • Temperature range: -40 to +85 °C
  • Maximum speed: 6000 rpm (continuous operation at 3000 rpm)
  • Output: RS422/TTL invertible

Read more

  • Pulse frequency: max. 300 kHz
  • Connector: M12 x 1 male connector, 8-pin


Product

Manufacturer Material ID -
REI-10SA1S-4B512-H1181
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39121402
Turck Banner

Availability On Request

£388.80
