100010389 {T}

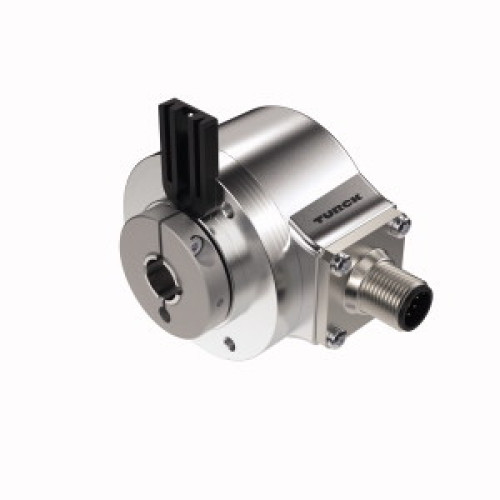

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution

Manufacturer's No: REI-12H12T-2B2500-H1181     Manufacturer: Turck Banner
Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution

Availability On Request

£404.46
  • Incremental Encoder from the Industrial Line
  • Operating voltage: 10-30 VDC
  • Resolution: 2500 pulses per revolution (ppr)
  • Flange with torque stop, Ø 50.8 mm
  • Hollow shaft, Ø 12 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class: IP67 on housing and shaft side
  • Temperature range: -40 to +85 °C
  • Max. speed: 6000 rpm (continuous operation at 3000 rpm)

Read more

  • Output: Push-pull/HTL invertible
  • Pulse frequency: max. 300 kHz
  • Connector: M12 x 1 male, 8-pin


Product

Manufacturer Material ID -
REI-12H12T-2B2500-H1181
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39121402
Turck Banner

Availability On Request

£404.46
