100016347 {T}

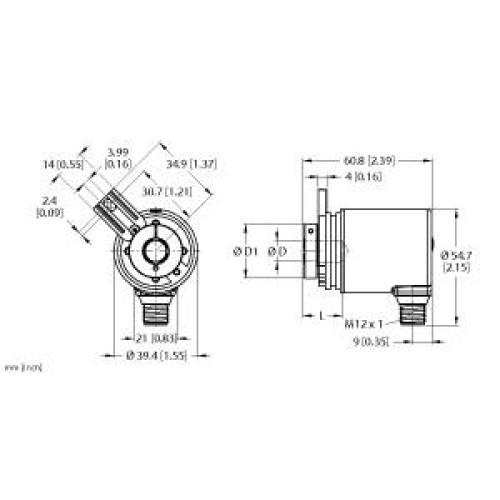

Absolute Rotary Encoder - Singleturn, Industrial Line, Operating voltage 10…30

Manufacturer's No: RES-183B8T-3C13B-H1181     Manufacturer: Turck Banner
Absolute Rotary Encoder - Singleturn, Industrial Line, Operating voltage 10…30

Availability On Request

£503.15
  • Absolute Rotary Encoder
  • Single-Turn
  • Industrial Line
  • Operating voltage: 10-30 VDC
  • Flange with mounting element
  • Blind hole hollow shaft, Ø 8 mm (max. plug-in depth: 18.5 mm)
  • Magnetic measuring principle
  • Shaft material: stainless steel
  • Protection class: IP67 on housing and shaft side
  • Temperature range: -40 to +85 °C

Read more

  • Max. speed: 4000 rpm (continuous operation at 2000 rpm)
  • Output: SSI, gray
  • Connector: M12 x 1 male, 8-pin
  • Resolution: 360° resolved in 13 bit (8192 positions)


Product

Manufacturer Material ID -
RES-183B8T-3C13B-H1181
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39121402
Turck Banner

Availability On Request

£503.15
