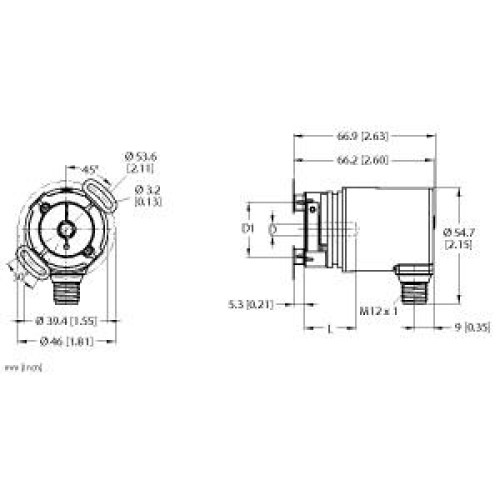

Absolute Rotary Encoder - Singleturn, Industrial Line, Operating voltage 10…30

Manufacturer's No: RES-185BA0E-9F14B-H1151     Manufacturer: Turck Banner
Absolute Rotary Encoder - Singleturn, Industrial Line, Operating voltage 10…30

Availability On Request

£544.73
  • Absolute Rotary Encoder
  • Single-Turn
  • Industrial Line
  • Operating Voltage: 10-30 VDC
  • Flange with Stator Coupling
  • Ø 46 mm Flange
  • Blind Hole Hollow Shaft
  • Ø 6.35 mm Shaft Diameter (max. plug-in depth 18.5 mm)
  • Magnetic Measuring Principle
  • Shaft Material: Stainless Steel

Read more

  • Protection Class: IP67 (housing and shaft side)
  • Temperature Range: -40 to +85 °C
  • Max. Speed: 4000 rpm (continuous operation at 2000 rpm)
  • SAE J1939 Protocol
  • Connector: M12 x 1 Male, 5-pin
  • Resolution: 360° resolved in 14 bit (16384 positions)


Product

Manufacturer Material ID -
RES-185BA0E-9F14B-H1151
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
41111926
Turck Banner

Availability On Request

£544.73
